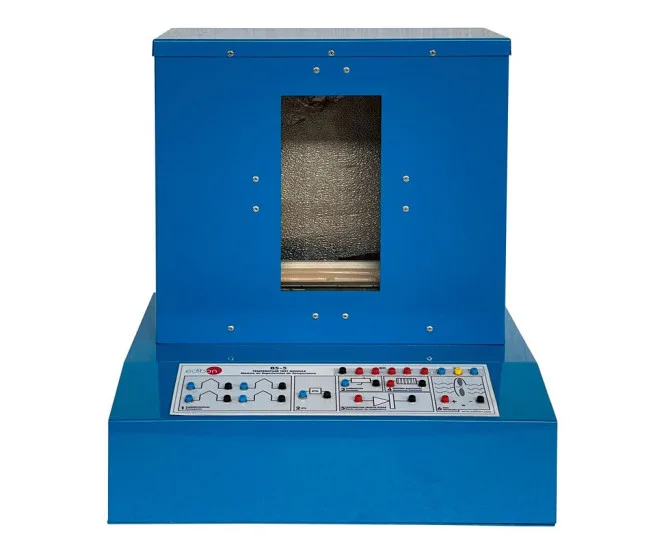

BS5: Ovens Test Module
Brand: EDIBON | Category: Scientific & Laboratory Equipment
The "BS5" Ovens Test Module was designed by EDIBON so that temperature measurement techniques could be studied using several kinds of sensors placed inside the sealed enclosure that serves as the oven.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Heating element | Two parallel resistors; maximum dissipation 500 W |
| Heating-element supply | 0–30 VAC |
| Fan supply | 12 VDC maximum |
| Temperature sensors | 4 thermocouples, platinum resistance thermometer, thermistor and semiconductor sensor |
| Dimensions | 405 × 300 × 470 mm approx. |
| Weight | 7.5 kg approx. |
| Required separately | BSPC or BSUB base unit |
Selected BS5 module data. Sensor measurement ranges do not establish a safe oven operating-temperature range; confirm that limit and the base-unit configuration in the quotation. Dimensions and weight are approximate. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Mechatronics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
