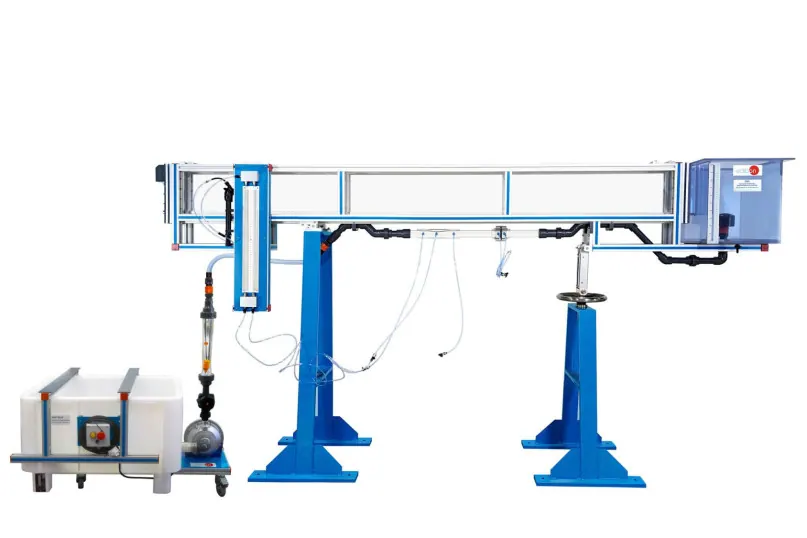

CAS: Sediment Transport Demonstration Channel
Brand: EDIBON | Category: Scientific & Laboratory Equipment
CAS is a recirculating channel with a mobile sand bed for studying sediment transport. Flow rate and slope are varied so students can observe the start of particle motion, bed forms such as ripples and dunes, and scour around structures.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 3600 x 1000 x 1700 mm approx |
| Weight | 250 kg approx |
| Channel section | 80 mm, lenght: 2.5 m |
| Inlet tank with stilling of flow and with drain valve, capacity | 38 l |
| Specification | Manometric tubes panel formed by two methacrylate tubes of 500 mm of length, with a graduated |
| Specification | The grain diameter of the sediment oscillates among 0.1 to 0.3 mm |
