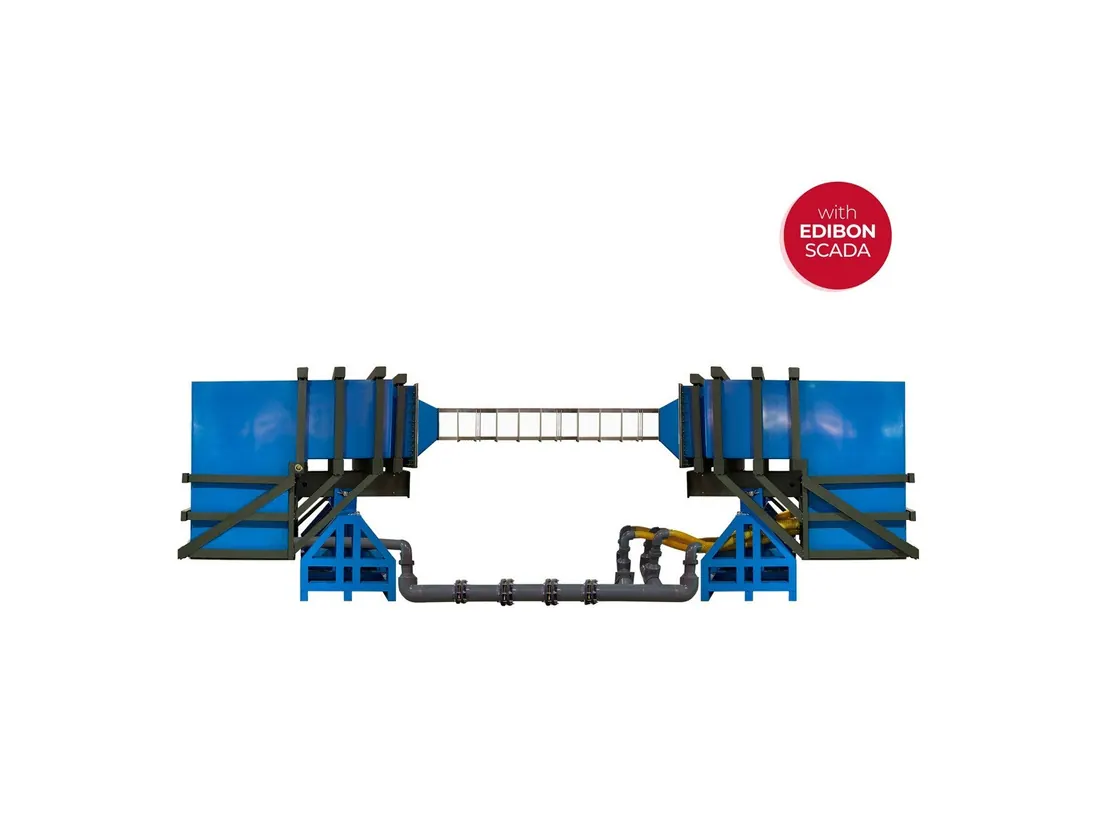

HTLS150/150C: Computer Controlled Closed Hydrodynamic Tunnel for Low Speed, 150X150 mm
Brand: EDIBON | Category: Scientific & Laboratory Equipment
HTLS150/150C is a computer controlled closed circuit water tunnel with a 150 x 150 mm working section for low speed tests. It is used to visualise flow around bodies and to measure the forces acting on them at low Reynolds numbers.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 6000 x 1000 x 1900 mm approx |
| Weight | 1000 Kg approx |
| Specification | Working area of 150 x 150 mm and 3000 mm in length (consult HTLS150/150C |
| Variable speed, computer controlled axial propeller pump | Power: 10 to 20 kW |
| Specification | Input range (V)=±10 V. Data transfers=DMA, interrupts, programmed I/0. DMA channels=6 |
| Specification | Analog output output range (V)=±10 V. Data transfers=DMA, interrupts, programmed I/0 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
