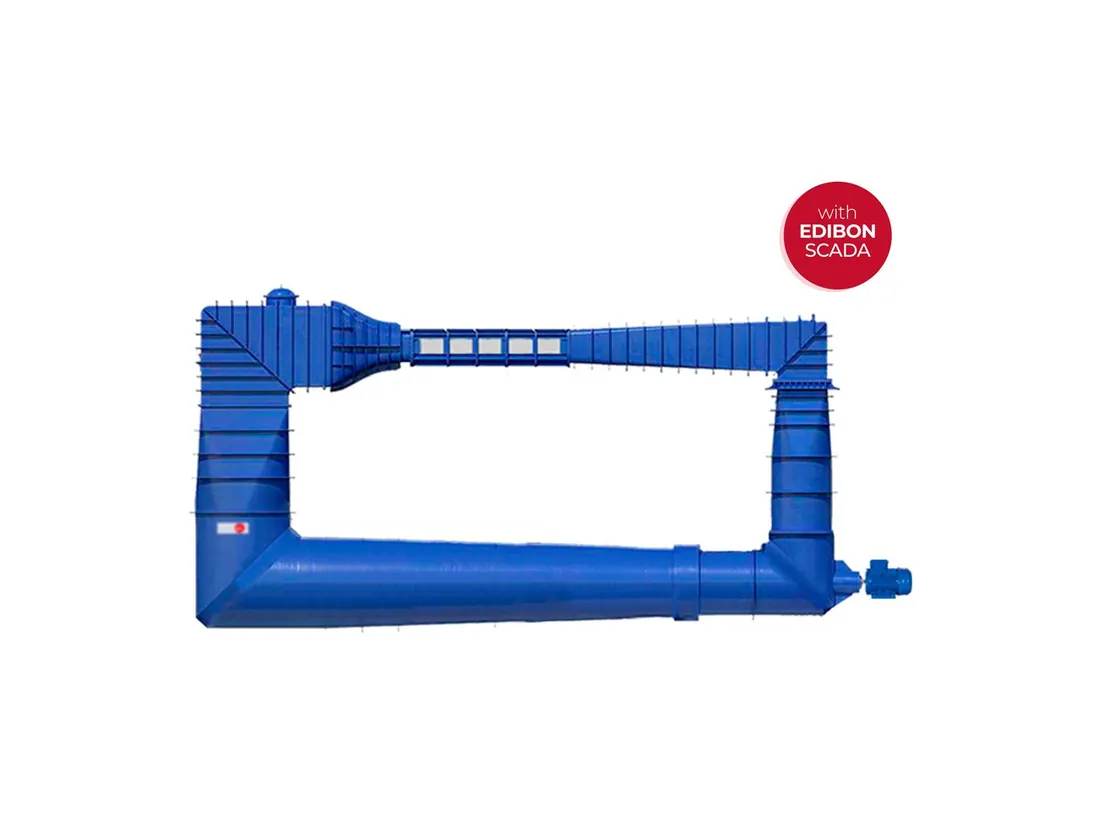

HTHS150/150C: Computer Controlled Closed Hydrodynamic Tunnel for High Speed, 150X150 mm
Brand: EDIBON | Category: Scientific & Laboratory Equipment
HTHS150/150C is a computer controlled closed circuit water tunnel with a 150 x 150 mm working section for high speed tests. Models are mounted in the transparent section and lift, drag and pressure distribution are recorded through the data acquisition system.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 6000 x 1000 x 1900 mm approx |
| Weight | 1000 Kg approx |
| Specification | Five meters in length between vertical tunnel parts and 1.6 m in height between |
| Specification | Five 500 x 150 mm windows per side, which can be replaced if necessary |
| Variable speed, computer controlled axial propeller pump | Power: 10 to 20 kW |
| Specification | Input range (V)=±10 V. Data transfers=DMA, interrupts, programmed I/0. DMA channels=6 |
