CBCT-161-Mini
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

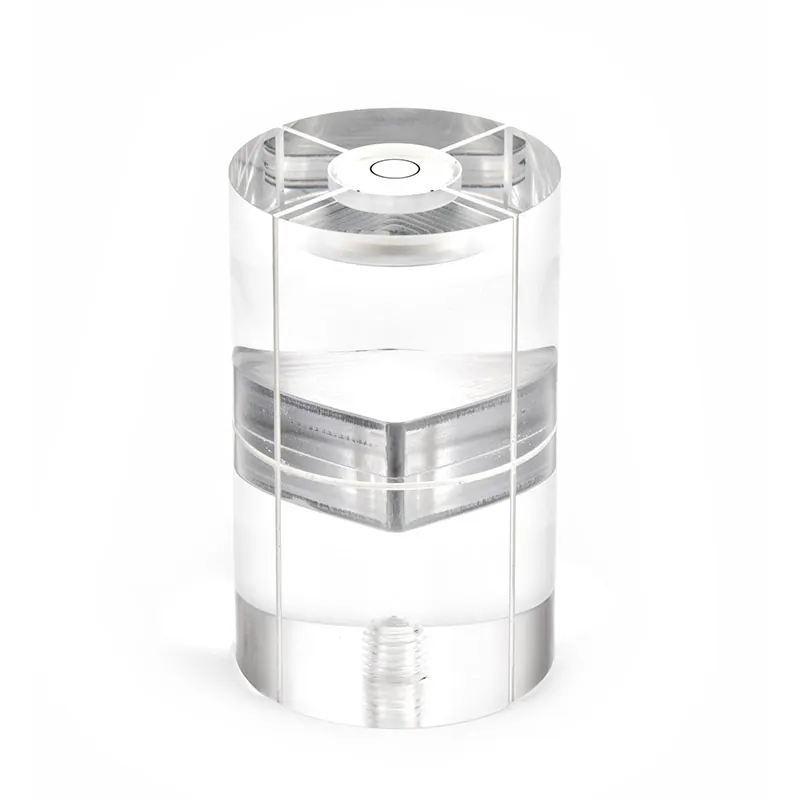

A smaller version of the CBCT-161 phantom for constancy testing of small field of view dental cone beam CT systems, designed in accordance with DIN 6868-161. It comes with a tripod and levelling platform for repeatable positioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | PMMA cylinder, 50 mm diameter, 80 mm length |
| Specification | Soft tissue equivalent PMMA, density 1.20 plus or minus 0.01 |
| Specification | Bone equivalent PVC, density 1.30 to 1.45 g/cm3, and an air gap |
| Specification | Spirit level, pigment filled centre markings, tripod and levelling platform |
| Specification | Measures pixel intensity value linearity, noise, CNR and SNR |
| Specification | Free software included |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
