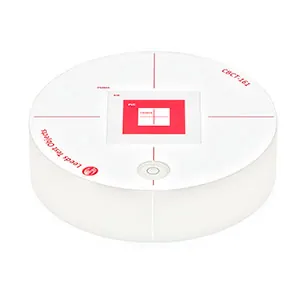

CBCT-161
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A PMMA cylinder phantom for constancy testing of dental cone beam CT systems to DIN 6868-161. It carries soft tissue equivalent, bone equivalent and air sections, and the CBCT-161-A accessory extends it to acceptance testing.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | PMMA cylinder, 160 mm diameter, 40 mm length |
| Specification | Soft tissue equivalent PMMA, bone equivalent PVC density 1.30 to 1.45 g/cm3, and an air gap |
| Specification | Measures pixel intensity value linearity, noise, CNR, homogeneity, artefacts and MTF |
| Specification | Spirit level, pigment filled centre markings and tripod for universal positioning |
| Specification | CBCT-161-A accessory adds 160 mm diameter cylinders of 60 mm and 50 mm length for acceptance testing |
| Specification | Conforms to DIN 6868-161 and IEC 61223-3-7 |
