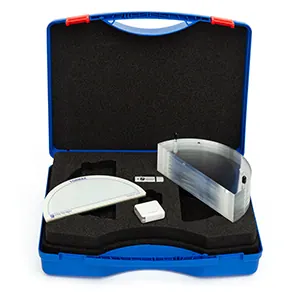

TOR MAX
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging
A routine mammography test object supplied with a 7 cm attenuator stack, offering two resolution limit patterns rather than one. It covers sensitometry, low and high contrast detail detectability and simulated micro-calcifications.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Ten step grey scale plus two points for sensitometric measurements |
| Specification | Resolution limit 1.0 to 20.0 LP/mm x 2 |
| Low contrast large detail detectability | 12 details, 5.6 mm diameter |
| High contrast small detail detectability | 11 details, 0.5 and 0.25 mm diameter |
| Specification | Irregular shaped particles on a step wedge background, median sizes 125, 225 and 325 microns |
| Specification | Low contrast resolution pattern, 1.8 to 5 line pairs/mm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
