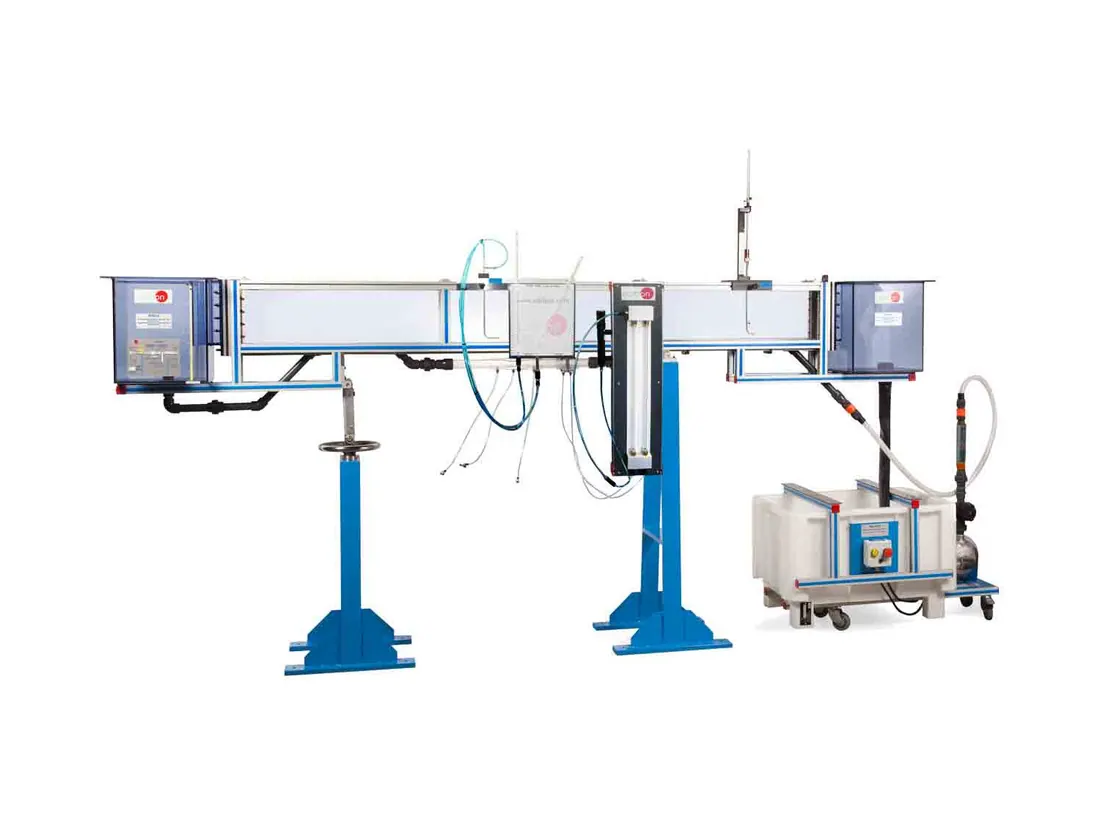

CF: Flow Channels (section: 80X300 mm)
Brand: EDIBON | Category: Scientific & Laboratory Equipment
CF is a tilting open channel flume with a working section of 80 x 300 mm. Weirs, gates, spillways and other models are placed in the glass sided channel to study open channel flow, the hydraulic jump and flow over structures. A computer controlled version, CFC, is also published.
Technical Specifications
| Parameter | Value |
|---|---|
| Dimensions | 3600 x 1000 x 1700 mm approx |
| Weight | 250 Kg approx |
| CF80/2. Flow channel (section | 80 x 300 mm), length: 2.5 m |
| CF80/5. Flow channel (section | 80 x 300 mm), length: 5 m |
| Adjustable channel inclination, range | 0 to 3 % |
| Inlet tank (capacity | 38 l), with stilling of flow and with drain valve |
