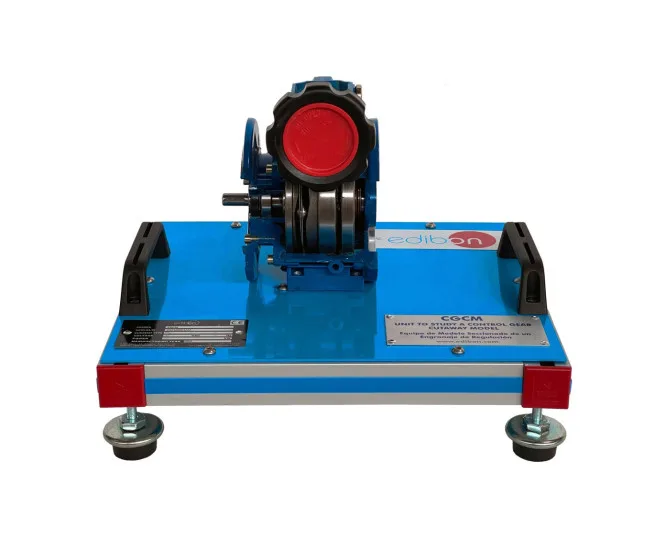

CGCM: Unit to Study a Control Gear Cutaway Model
Brand: EDIBON | Category: Scientific & Laboratory Equipment
Used to precisely adjust tooth spacing, this type of gear is the subject of the Unit to Study a Control Gear Cutaway Model, "CGCM", designed by EDIBON.
Published teaching-model details
| Parameter | Value |
|---|---|
| Housing material | Cast iron / steel |
| Unit dimensions | 350 × 300 × 160 mm approx. |
| Unit weight | 10.5 kg approx. |
Selected construction and installation values for the CGCM cutaway teaching model from brochure pages 2–4. This is a model for observing a transmission mechanism; the data does not establish suitability as an industrial production drive. Confirm the complete teaching set and safety instructions. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
