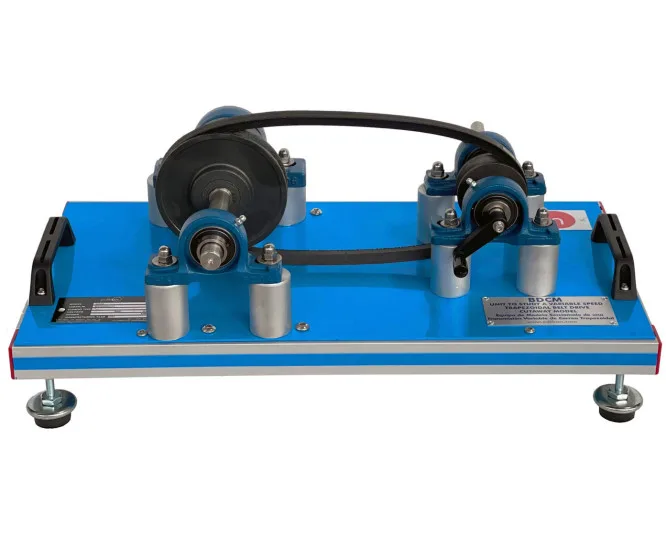

BDCM: Unit to Study a Variable Speed Trapezoidal Belt Drive Cutaway Model
Brand: EDIBON | Category: Scientific & Laboratory Equipment
This transmission system, which provides a continuous variation of speed ratio, can be studied with the Unit to Study a Variable Speed Trapezoidal Belt Drive Cutaway Model, "BDCM", designed by EDIBON.
Published teaching-model details
| Parameter | Value |
|---|---|
| Housing material | Cast iron / steel |
| Belt | Toothed rubber belt |
| Unit dimensions | 350 × 300 × 200 mm approx. |
| Unit weight | 8 kg approx. |
Selected construction and installation values for the BDCM cutaway teaching model from brochure pages 2–4. This is a model for observing a transmission mechanism; the data does not establish suitability as an industrial production drive. Confirm the complete teaching set and safety instructions. Checked 2026-09-29.
