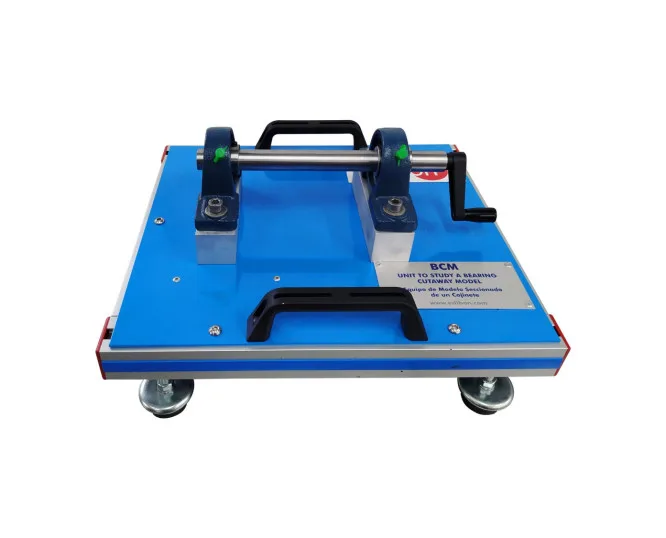

BCM: Unit to Study a Bearing Cutaway Model
Brand: EDIBON | Category: Scientific & Laboratory Equipment
This mechanical component, essential in industry for supporting loads while enabling relative motion between two contacting surfaces, is the focus of the Unit to Study a Bearing Cutaway Model, "BCM", designed by EDIBON.
Published teaching-model details
| Parameter | Value |
|---|---|
| Housing material | Cast iron / steel |
| Internal bearing diameter | 20 mm |
| Unit dimensions | 370 × 310 × 200 mm approx. |
| Unit weight | 3 kg approx. |
Selected construction and installation values for the BCM cutaway teaching model from brochure pages 2–4. This is a model for observing a transmission mechanism; the data does not establish suitability as an industrial production drive. Confirm the complete teaching set and safety instructions. Checked 2026-09-29.
Manufacturer reference document (opens in a new tab)
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Mechanics experiments, syllabus and number of student workstations
- Required base unit, modules, sensors, control/data-acquisition software and accessories
- Bench/floor space, utilities, practical manuals and faculty training
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
