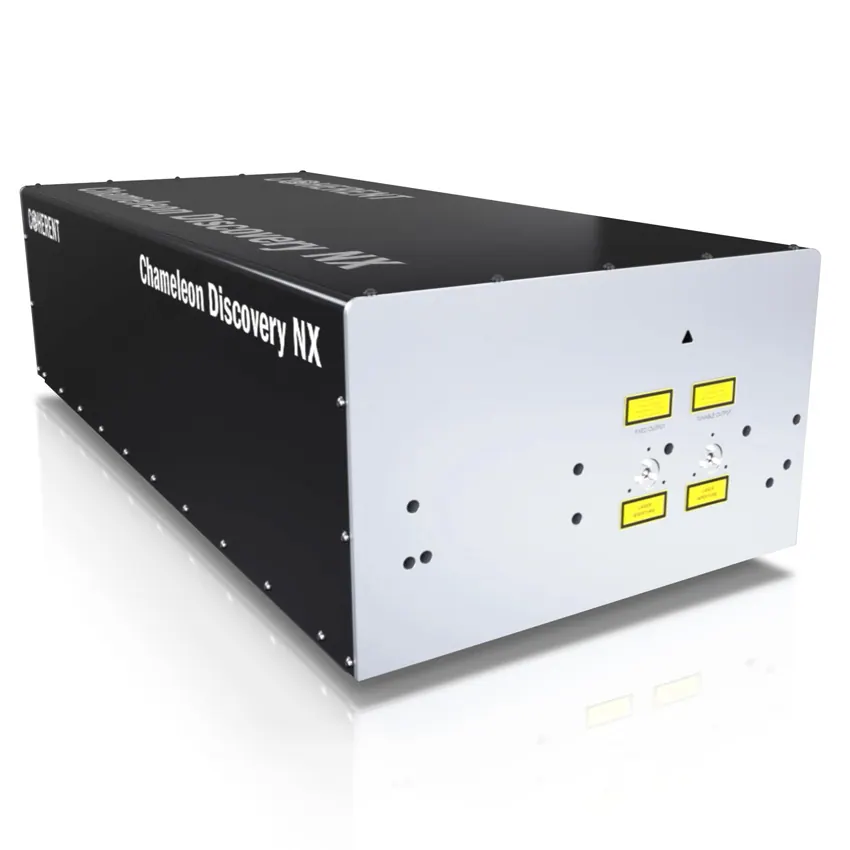

Chameleon Discovery Series
Brand: Coherent | Category: Scientific & Laboratory Equipment
Chameleon Discovery are femtosecond oscillators for two-photon imaging and spectroscopy. The NX model tunes across 660 to 1320 nm with a phase locked fixed 1040 nm second beam, while the LX is a single tunable output model. Both run at 80 MHz with built in GDD precompensation.
Technical Specifications
| Parameter | Value |
|---|---|
| Discovery NX | tuning 660 to 1320 nm, fixed output at 1040 nm |
| Discovery LX | tuning 680 to 1080 nm, no fixed beam |
| Pulse duration | 100 fs, repetition rate 80 MHz |
| Output power, tunable beam at peak | 3600 mW (NX), 3200 mW (LX) |
| Output power, fixed beam | 3500 mW (NX) |
| Specification | TPC models add built in Total Power Control, 2700 mW tunable (NX TPC), 2400 mW (LX TPC) |
