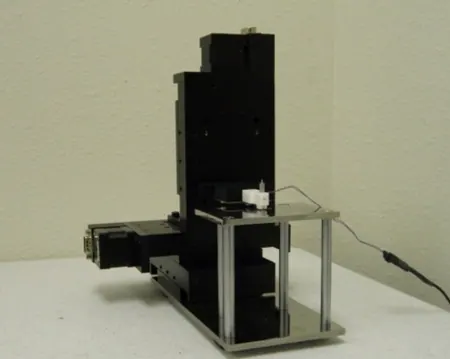

CHI1550A Series Pico Liter Solution Dispenser
Brand: CH Instruments | Category: Nanotechnology
The CHI1550A dispenses picolitre droplets to build high density solution arrays for chemical, biological and medical work. It combines a three dimensional positioner, a piezoelectric jetting device and a sample platform, with software for binary, ternary and quaternary array patterns.
Technical Specifications
| Parameter | Value |
|---|---|
| Micropositioner maximum range of travel | 50 mm |
| Motor resolution | 0.1 um |
| Maximum speed | 4 mm per second |
| Stall load | 50 N |
| Nozzle size | 60 microns |
| Droplet size | 100 to 200 picolitres |
