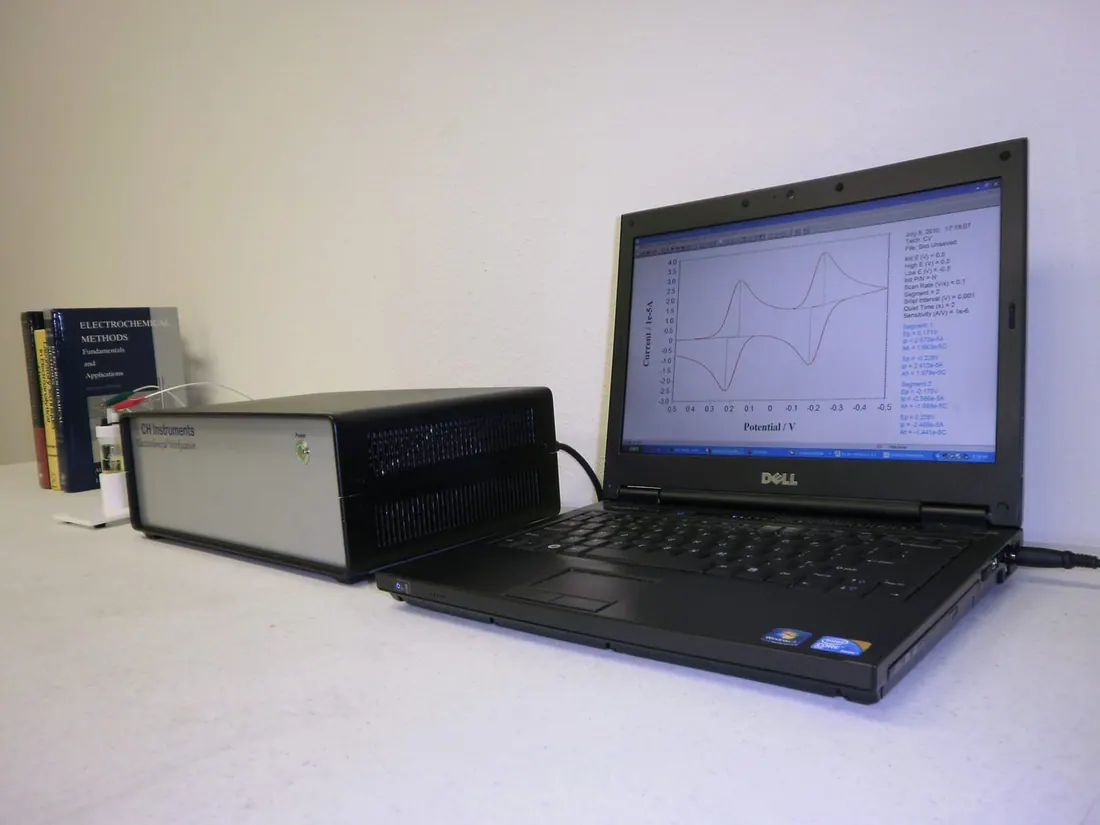

Model 1400 Series 4-Channel Potentiometer/Potentiostat
Brand: CH Instruments | Category: Nanotechnology
The Model 1400 combines a four channel potentiometer with a four channel potentiostat, so open circuit sensors such as ion selective electrodes can be read at the same time as amperometric or voltammetric sensors. It is aimed at electrode array characterisation and real time cell metabolism sensing.
Technical Specifications
| Parameter | Value |
|---|---|
| Four channel potentiometer input potential range | +/-10 V |
| Potentiometer input impedance | 10^13 ohm |
| Potentiometer gain selection | 1 or 10 |
| Potentiostat potential range, all channels | +/-10 V |
| Current range, each channel | 10 mA |
| Sensitivity scale | 10^-9 to 0.001 A/V in 7 ranges |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about CH Instruments equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
