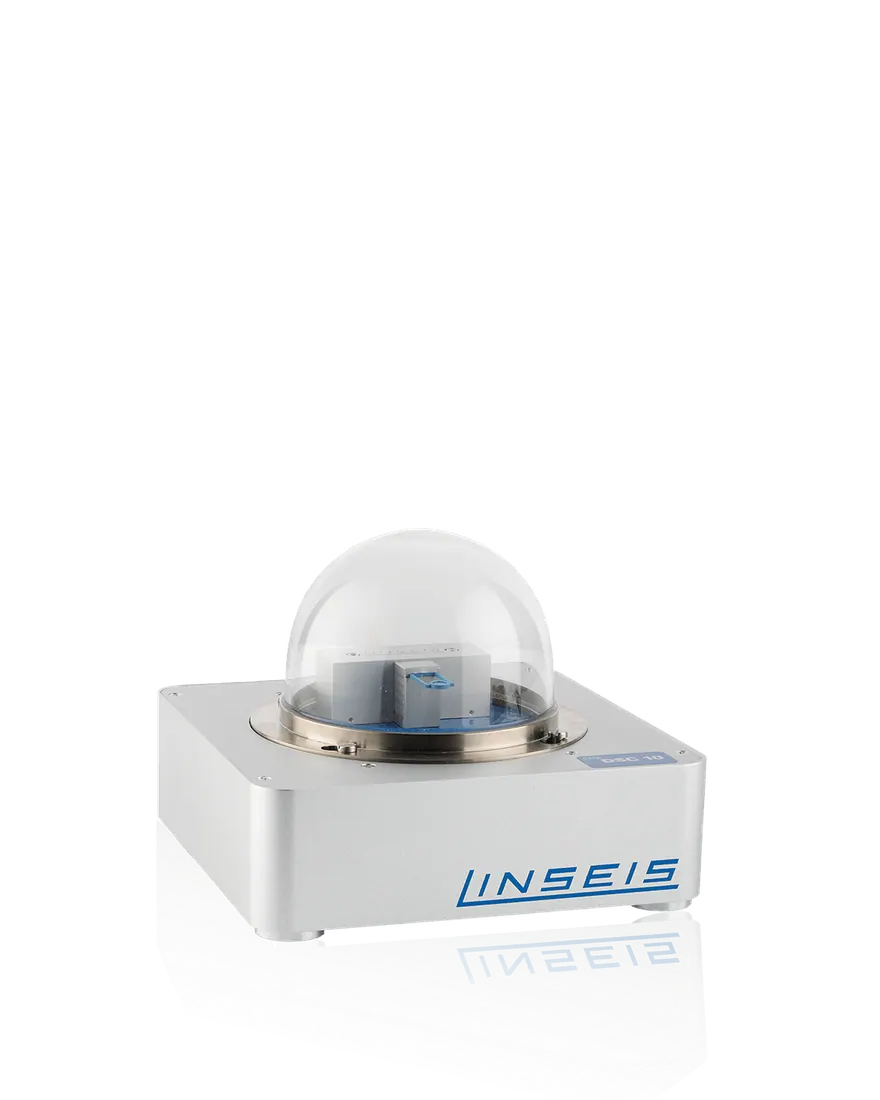

Chip-DSC L66 Advanced
Brand: Linseis | Category: Nanotechnology
The Chip-DSC L66 Advanced, also sold as the Chip-DSC 10, is a compact differential scanning calorimeter with a replaceable chip sensor. With the matching cooling option it measures thermal transitions from -180 C up to 600 C. It is used for quality control and for research work.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -180 C (with corresponding cooling option) up to +600 C |
| Heating and cooling rates | 0.001 to 300 K/min |
| Temperature accuracy | +/- 0.2 K |
| Repeatability | +/- 0.02 K |
| Resolution | 0.03 uW |
| Measuring range | +/-2.5 to +/-1000 mW |
