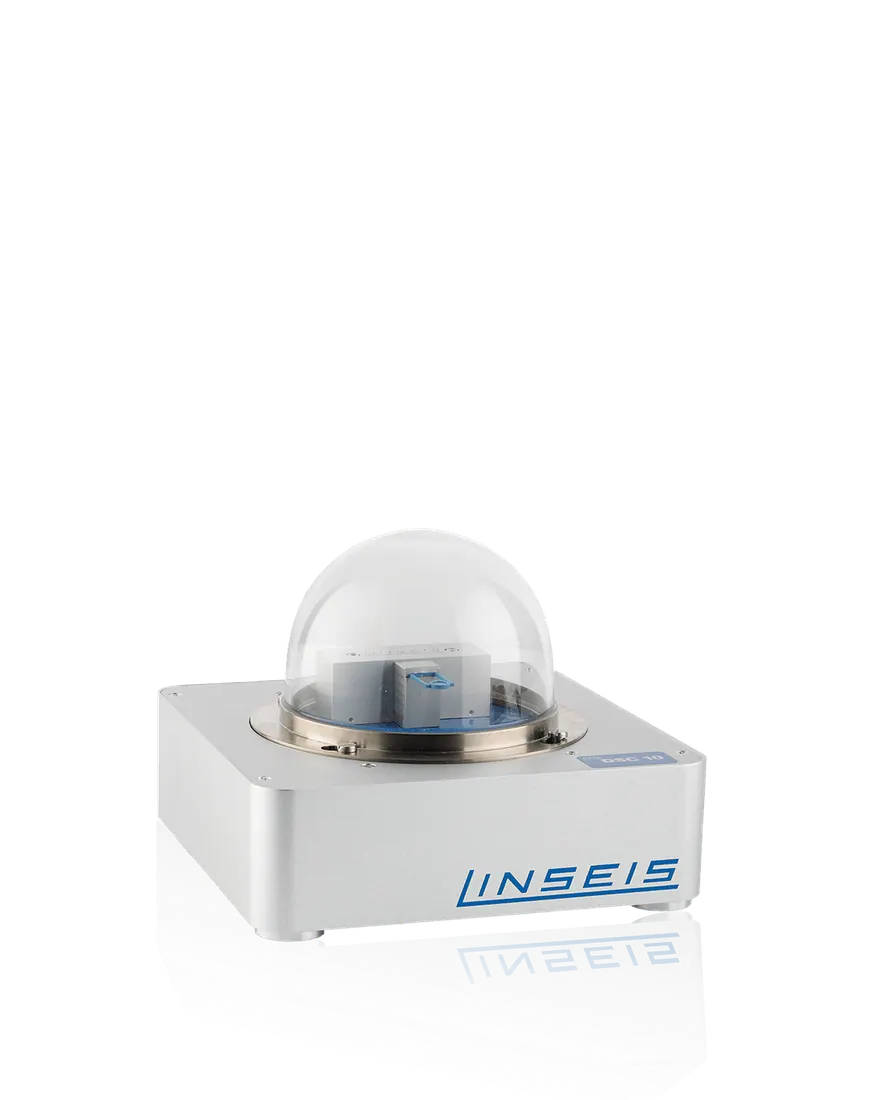

Chip-DSC L66 Ultimate
Brand: Linseis | Category: Nanotechnology
The Chip-DSC L66 Ultimate, also sold as the Chip-DSC 100, is a differential scanning calorimeter based on chip sensor technology. It measures thermal transitions from -150 C up to 600 C at heating and cooling rates as high as 1000 K/min. Options include a sample robot and external coolers.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | -150 up to 600 C (Peltier cooling system, closed-loop intracooler, LN2 cooling system) |
| Heating and cooling rates | 0.001 up to 1000 K/min |
| Temperature accuracy | +/- 0.2 K |
| Repeatability | +/- 0.02 K |
| Resolution | 0.03 uW |
| Measuring range | +/-2.5 to +/-1000 mW |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Linseis equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
