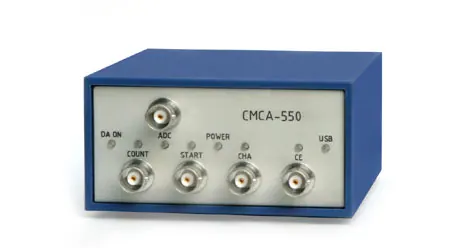

CMCA-550 Data Acquisition Module
Brand: WissEl | Category: Nanotechnology
A data acquisition module for Mossbauer spectroscopy that runs with a personal computer. It combines multichannel scaling for spectrum collection with pulse height analysis, so an energy window set in PHA mode can be applied while Mossbauer data is acquired.
Technical Specifications
| Parameter | Value |
|---|---|
| Operating modes | PHA, MCS and MCS with window |
| PHA | 1 to 10 V analogue input, 1024 to 8192 channels, 48 MHz sampling |
| MCS | up to 8192 channels per sweep, count frequency above 100 MHz |
| Maximum channel advance frequency | approximately 500 kHz |
| Communication | USB 1.1 and RS-232C at 115500 baud |
| Specification | WISSOFT 2003 software controls up to four modules on one PC |
