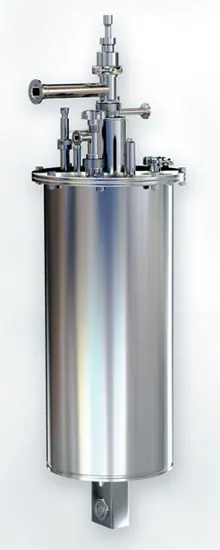

MBBC-HE0106 Mossbauer He/N2 Bath Cryostat
Brand: WissEl | Category: Nanotechnology
A top loading stainless steel bath cryostat for low temperature Mossbauer spectroscopy with the source at ambient temperature. It runs on liquid helium or liquid nitrogen and allows the sample to be changed while cold.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | 2.2 K with helium, or 56 K with nitrogen, up to 330 K |
| Temperature stability | equal to or better than 0.3 K |
| Temperature gradient | equal to or smaller than 0.3 K |
| Specification | Liquid nitrogen volume 8.4 l, liquid helium volume 5.1 l |
| Liquid helium stand time | 24 h unheated at liquid helium temperature |
| Absorption of gamma radiation by the mylar windows | less than 1 per cent |
