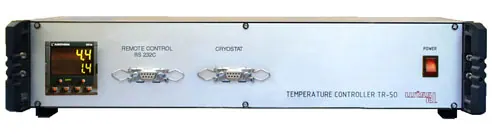

TR-50 Temperature Controller
Brand: WissEl | Category: Nanotechnology
A temperature controller for the WissEl Mossbauer bath cryostats. It reads a DT-670 silicon diode inside the cryostat through a four wire connection and drives the cryostat heater from a built-in Eurotherm 3216 control module.
Technical Specifications
| Parameter | Value |
|---|---|
| Minimum programmable temperature | 1.4 K |
| Maximum temperature | approximately 350 K depending on the cryostat used |
| Sensor input | less than 1.75 V at a constant excitation current of 10 uA |
| Heater output | maximum 25 V, 800 mA |
| Specification | Built-in Eurotherm 3216 temperature control module |
| Specification | Optional remote control over RS-232C serial interface |
