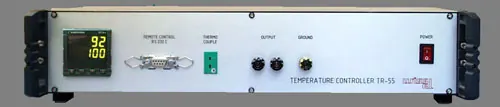

TR-55 Temperature Controller
Brand: WissEl | Category: Nanotechnology
A temperature controller designed for the MBF-1100 Mossbauer furnace, with an output stage sized to heat that furnace. It reads a type K thermocouple inside the furnace and has an auto-tune facility for the control loop.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1100 deg C, 1000 deg C for long term measurements |
| Input | type K Chromel Alumel thermocouple inside the furnace |
| Heater output | maximum 48 V, 4 A |
| Specification | Pulse width controlled output for the heating device |
| Specification | Built-in Eurotherm 3216 temperature control module |
| Specification | Optional remote control over RS-232C serial interface |
