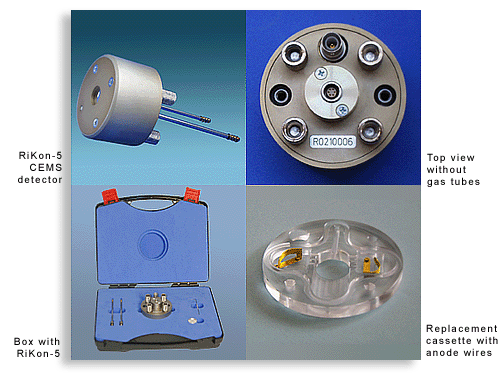

RiKon-5 CEMS Detector
Brand: WissEl | Category: Nanotechnology
A three wire gas flow proportional backscatter detector for conversion electron Mossbauer spectroscopy. It examines thin films and near surface layers without high vacuum, and can also detect re-emitted x-rays to probe deeper regions of the sample.
Technical Specifications
| Parameter | Value |
|---|---|
| Measurement temperature range | 100 K to room temperature, cooled with liquid nitrogen |
| Measuring angle | 0 to approximately 60 degrees between the gamma direction and the surface normal |
| CEMS counting gas | helium/methane at room temperature, helium/nitrogen at low temperature |
| X-ray counting gas | argon/methane at room temperature, argon/nitrogen at low temperature |
| Line width with argon/methane | 22.7 per cent at the 6.4 keV x-ray line |
| Line width with argon/methane | 14.7 per cent at the 14.4 keV gamma line |
