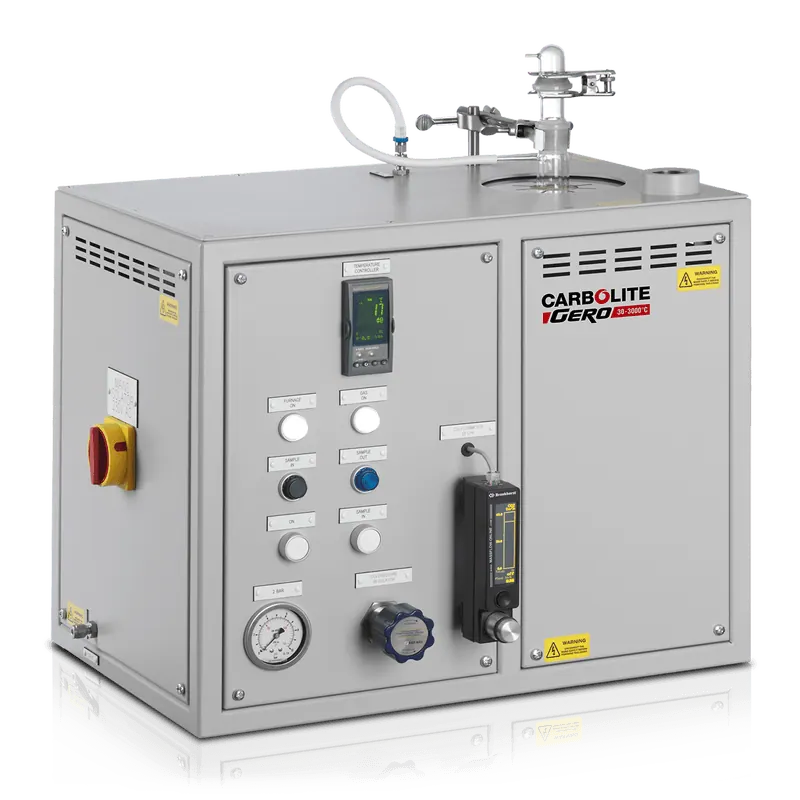

CO2 Reactivity Test Furnace CRF/1
Brand: Carbolite Gero | Category: Nanotechnology
A single zone tube furnace that determines the reactivity of calcined petroleum coke to carbon dioxide by loss in mass. The result indicates how an anode will later behave in an aluminium electrolysis cell.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1000 deg C, held to an accuracy of plus or minus 1 deg C |
| Specification | Conforms to ISO 12981-1 and BS 6043-2.20.1 |
| Sample | 5 g of coke, grain size 1 mm to 1.4 mm |
| Specification | Carbon dioxide stream of 50 l/h for approximately 100 minutes |
| Specification | External 520 x 600 x 400 mm, maximum power 1000 W |
| Specification | Eurotherm 3508 temperature control system, thermocouple type K |
