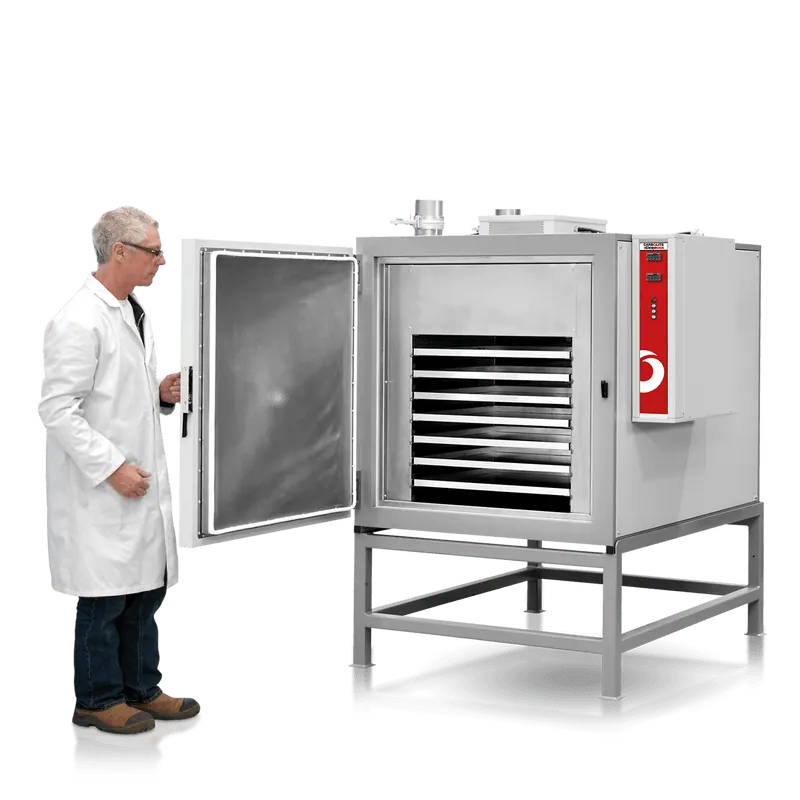

Coal Drying Oven CD
Brand: Carbolite Gero | Category: Nanotechnology
A pair of large drying ovens for coal sample preparation, CDLT for low temperature and CDHT for high temperature work. A high rate of horizontal airflow passes over each tray, and incoming air is preheated before it enters the chamber.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | CDLT operating range ambient to 50 deg C, CDHT ambient plus 10 to 200 deg C |
| Specification | Volume 454 litres, internal 610 x 610 x 1220 mm |
| Trays | 14 on 7 levels, total tray area 5.0 m2 |
| Specification | Temperature stability plus or minus 1 deg C, uniformity plus or minus 5 deg C |
| Specification | Maximum power 4500 W for CDLT, 9000 W for CDHT |
| Specification | Chamber and air guides in corrosion resistant grade 304 stainless steel |
