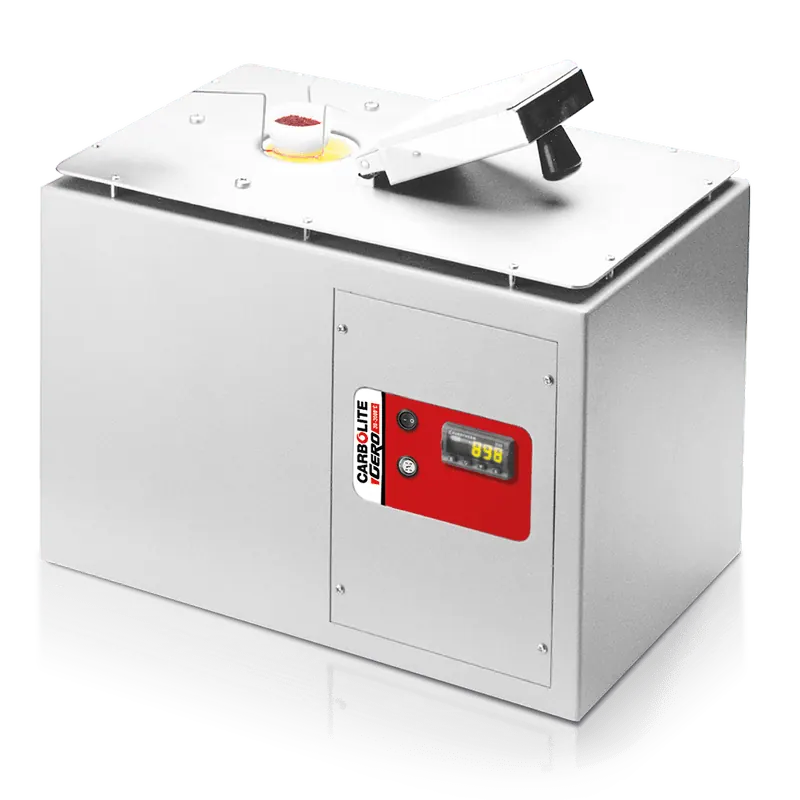

Swelling Number Index Furnace SNF
Brand: Carbolite Gero | Category: Nanotechnology
A furnace for determining the crucible swelling number, also called the free swelling index, of coal. Because the test requires the door to be open during heating, a residual current circuit breaker is fitted to protect the operator.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 900 deg C, maximum continuous 850 deg C |
| For testing to BS ISO 501 | 2012 and ASTM D720/D720M-15 |
| Specification | Crucible 26 mm external height, 41 mm external diameter, 11 mm internal base diameter |
| Specification | External 330 x 410 x 300 mm, maximum power 800 W, weight 26 kg |
| Specification | 30 mA residual current circuit breaker fitted |
| Specification | Accurate temperature control from the 132 PID controller |
