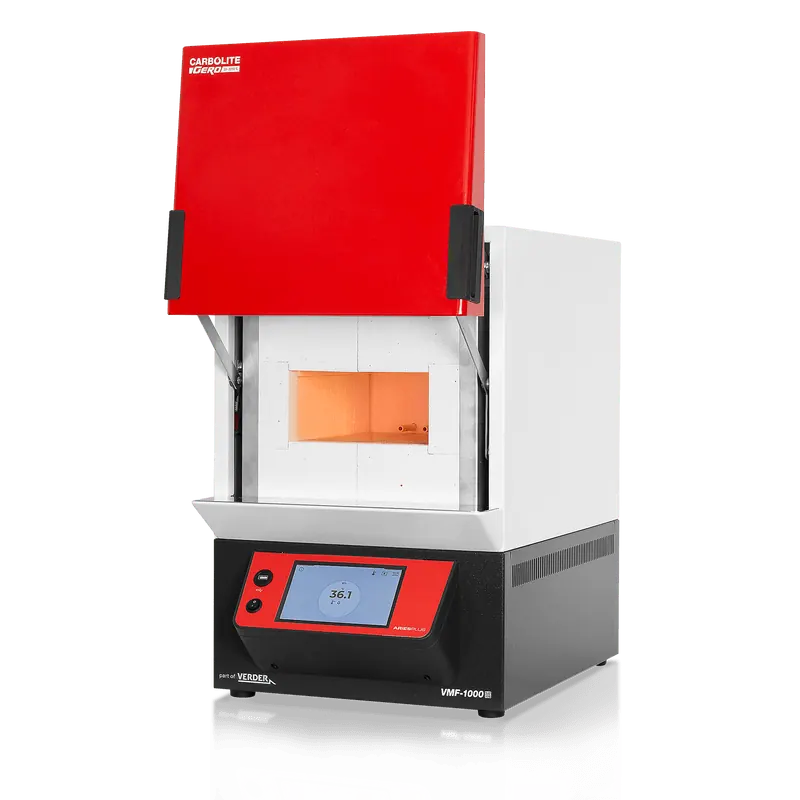

Volatile Matter Furnace VMF
Brand: Carbolite Gero | Category: Nanotechnology
A furnace for testing the volatile matter content of coal, offered as a top loading model to ASTM and a front loading model to ISO. The ISO version has calibration ports so an unsheathed thermocouple can be positioned below each crucible.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 1000 deg C on both models |
| Specification | VMF/ASTM for testing to ASTM D3175-11, top loading, 50 x 100 mm chamber |
| VMF 10/6 for testing to ISO 562 | 2010, front loading, 100 x 210 x 260 mm chamber |
| VMF/ASTM | maximum power 950 W, weight 9 kg |
| VMF 10/6 | maximum power 3000 W, weight 47 kg, heat-up 20 minutes to 900 deg C |
| Specification | Optional 4 or 9 crucible racks with loading handle for the VMF 10/6 |
