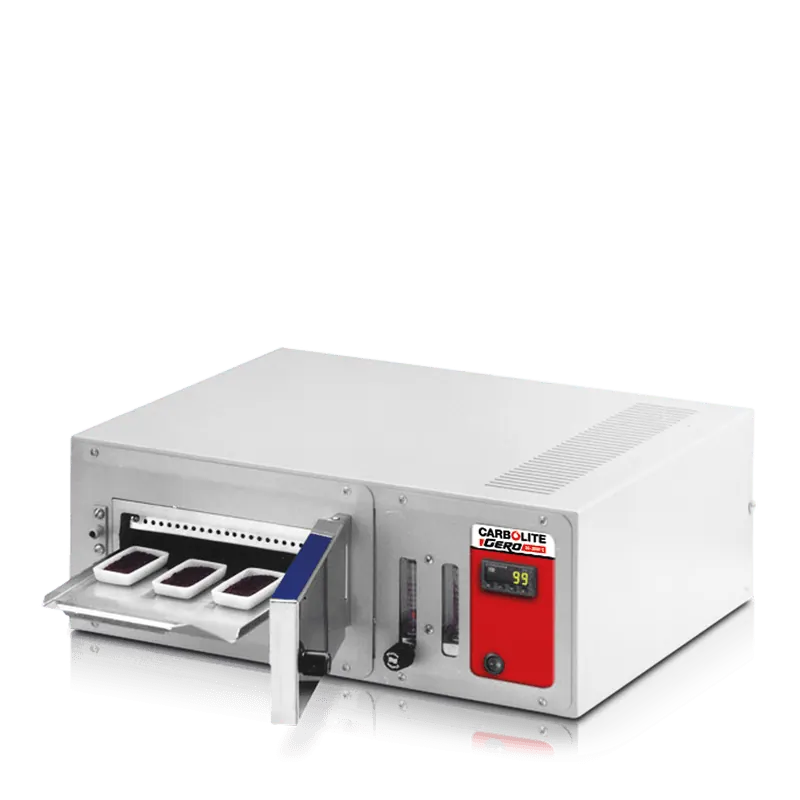

Minimum Free Space Oven MFS
Brand: Carbolite Gero | Category: Nanotechnology
An oven for determining moisture in coal by weight loss on drying. The small aluminium chamber gives the minimum free space required by the test standards, and nitrogen or air flows through a preheating chamber before entering the work chamber.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 210 deg C |
| Specification | MFS/1 ISO runs on nitrogen, MFS/1 ASTM runs on air |
| Specification | Volume 1.4 litres, chamber 25 x 195 x 290 mm |
| Specification | Uniformity plus or minus 5.0 deg C at 210 deg C, stability plus or minus 0.5 deg C |
| Specification | External 185 x 490 x 450 mm, maximum power 500 W |
| Complies with BS ISO 687 | 2010 and BS ISO 11722:2013, or ASTM D3173-11 |
