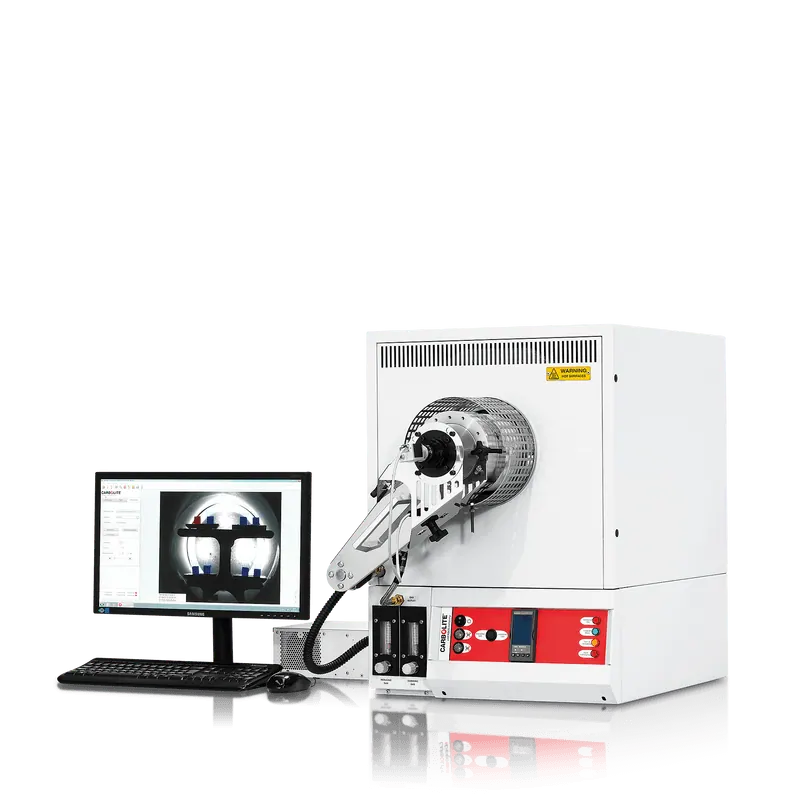

Ash Fusibility Test Furnace CAF G5
Brand: Carbolite Gero | Category: Nanotechnology
A furnace that determines the ash fusibility of coal, biomass and solid recovered fuels. Digital images are recorded automatically as the sample deforms, so a technician can review the run afterwards rather than watching the furnace throughout.
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature range | up to 1600 deg C |
| Specification | Precision plus or minus 3 deg C above 800 deg C, ramp rate 7 deg C per minute |
| Work tube | 79 mm internal diameter, mullite |
| Heating elements | silicon carbide x 6 |
| Maximum sample load | 8 manual analysis, 6 automatic analysis |
| Conforms to BS ISO 540 | 2008, ASTM D1857/D1857M-18 and DIN 51730:2007-09 |
