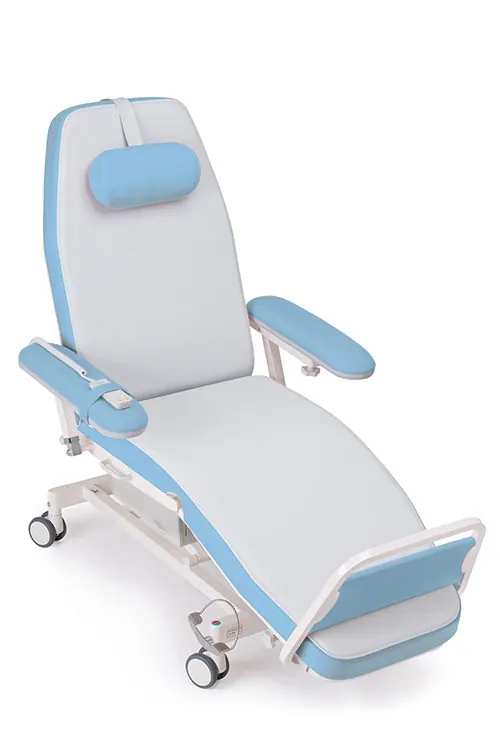

Comfort-4 Battery
Brand: Digiterm | Category: Medical Equipment
Therapy chair with a 24 V, 1.2 Ah rechargeable back-up supply that keeps the chair working during mains power failures. One full charge is sufficient to operate the actuators multiple times in case of emergency or patient transfer, and an extended 2.4 Ah battery is available as an option.
Technical Specifications
| Parameter | Value |
|---|---|
| Seat height adjustment | 55-77 cm |
| Backrest adjusting range | 80° (-13° under horizontal in Trendelenburg position) |
| Seat tilt adjustment | 20° |
| Legrest adjustment | 30° |
| Footrest adjustment | 25 cm (motorised) |
| Size of upholstery | L 210 x W 60 x H 9.5 cm |
| Armrest size | L 57 x W 15 x H 6.5 cm |
| Size of castors | 4x diameter 10 cm swivel castors with total lock |
| Weight of chair | 80 kg |
| Maximum patient load | 200 kg weight capacity |
| Technical data of motors | 24V DC, IPX6 |
| Standard power supply | 100-240 V AC, 50/60 Hz |
| Rechargeable battery back-up | 24 V/1,2 Ah |
| Applied directive and standards | 2017/745 (MDR) and harmonized standards |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
