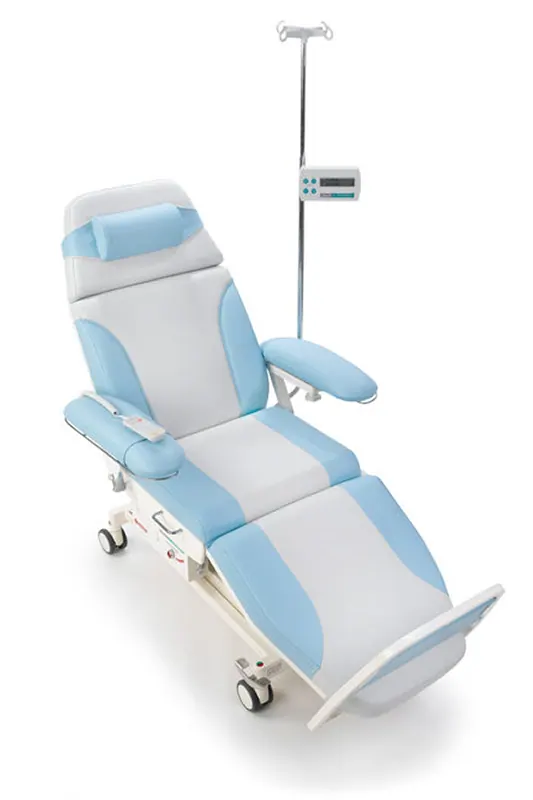

Comfort-4 Scale
Brand: Digiterm | Category: Medical Equipment
Therapy chair whose added function is to measure the weight of patients undergoing dialysis treatment, with an approved scale accuracy of 100 g and a 200 kg maximum patient load. Adjustment runs on 4+1 electric motors covering backrest, seat tilt, legrest, seat height and an optional motorised footrest.
Technical Specifications
| Parameter | Value |
|---|---|
| Seat height adjustment | 54-76 cm |
| Backrest adjusting range | 80 degrees (-13 degrees under horizontal in Trendelenburg position) |
| Seat tilt adjustment | 20 degrees |
| Legrest adjustment | 30 degrees |
| Footrest adjustment | 29 cm |
| Size of upholstery | L 215 x W 60 x H 9,5 cm |
| Armrest size | L 57 x W 17 cm |
| Size of castors | 4x diameter 10 cm swivel castors with total lock |
| Weight of chair | 95 kg |
| Maximum patient load | 200 kg weight capacity |
| Approved Scale accuracy | 100 g |
| Standard power supply | 230 V, 50-60 Hz (special power supplies upon request) |
| Technical data of motors | 24V DC, IPX6 |
| Frame colour | RAL 9001 |
| Applied directive and standards | 2014/31/EU, 93/42/EEC and harmonized standards |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
