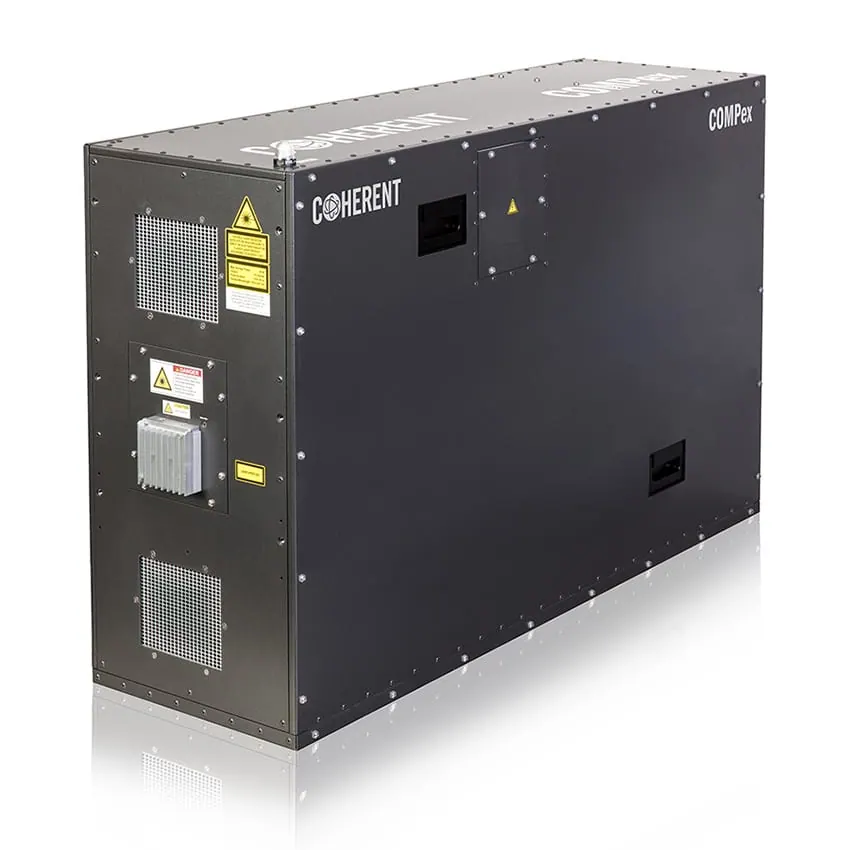

COMPex
Brand: Coherent | Category: Scientific & Laboratory Equipment
COMPex are excimer lasers delivering hundreds of millijoules per pulse at 157, 193, 248, 308 and 351 nm. They are used for pulsed laser deposition, wafer debonding, laser lift-off, solid sampling for LA-ICP-MS, wire stripping and fibre Bragg grating writing.
Technical Specifications
| Parameter | Value |
|---|---|
| Wavelengths | 157, 193, 248, 308 and 351 nm |
| COMPex 205 at 248 nm | 750 mJ maximum pulse energy, 50 Hz, 33 W |
| COMPex 110 at 248 nm | 400 mJ maximum pulse energy, 100 Hz, 30 W |
| COMPex 205 at 308 nm | 500 mJ maximum pulse energy, 50 Hz, 20 W |
| COMPex 205 at 193 nm | 400 mJ maximum pulse energy, 50 Hz, 15 W |
| COMPex F2 at 157 nm | 32 mJ maximum pulse energy, 50 Hz, 1.6 W |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
