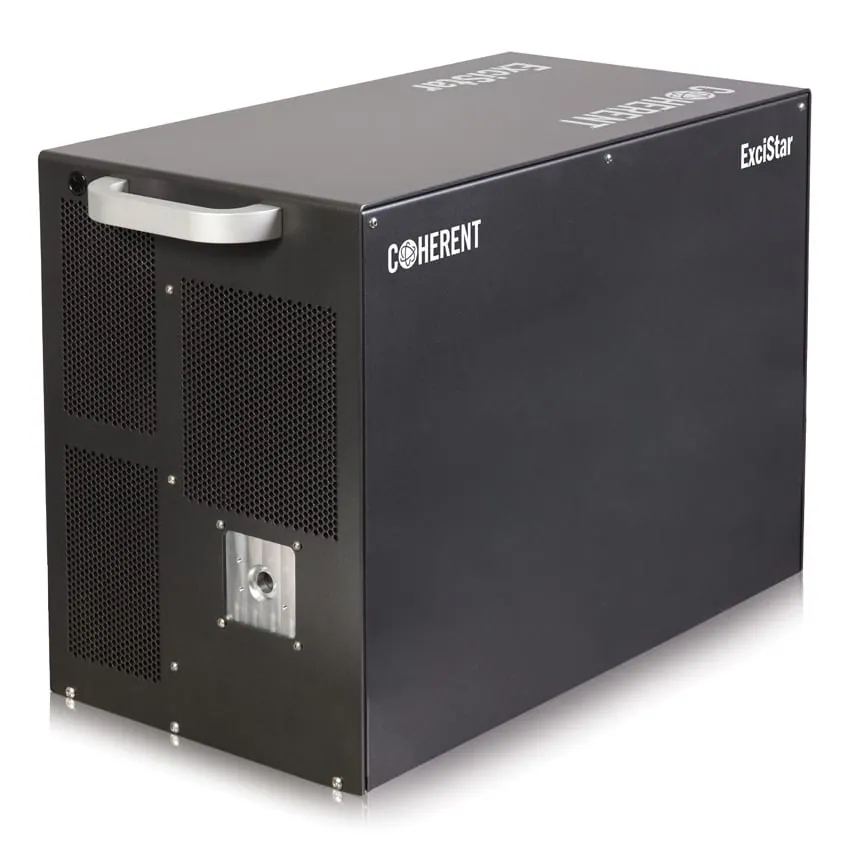

ExciStar
Brand: Coherent | Category: Scientific & Laboratory Equipment
ExciStar are tabletop excimer lasers operating at 193 nm or 248 nm with repetition rates up to 1 kHz. They are used for cornea ablation, prescription lens marking, optical sensor manufacture, protein research and fibre Bragg grating writing.
Technical Specifications
| Parameter | Value |
|---|---|
| ExciStar 1000 at 248 nm | 1000 Hz, 10 mJ maximum pulse energy, 10 W |
| ExciStar 500 at 248 nm | 500 Hz, 10 mJ maximum pulse energy, 5 W |
| ExciStar 200 at 248 nm | 200 Hz, 10 mJ maximum pulse energy, 2 W |
| ExciStar 1000 at 193 nm | 1000 Hz, 5 mJ maximum pulse energy, 5 W |
| ExciStar 500 at 193 nm | 500 Hz, 5 mJ maximum pulse energy, 2.5 W |
| ExciStar 200 at 193 nm | 200 Hz, 5 mJ maximum pulse energy, 1 W |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Coherent equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
