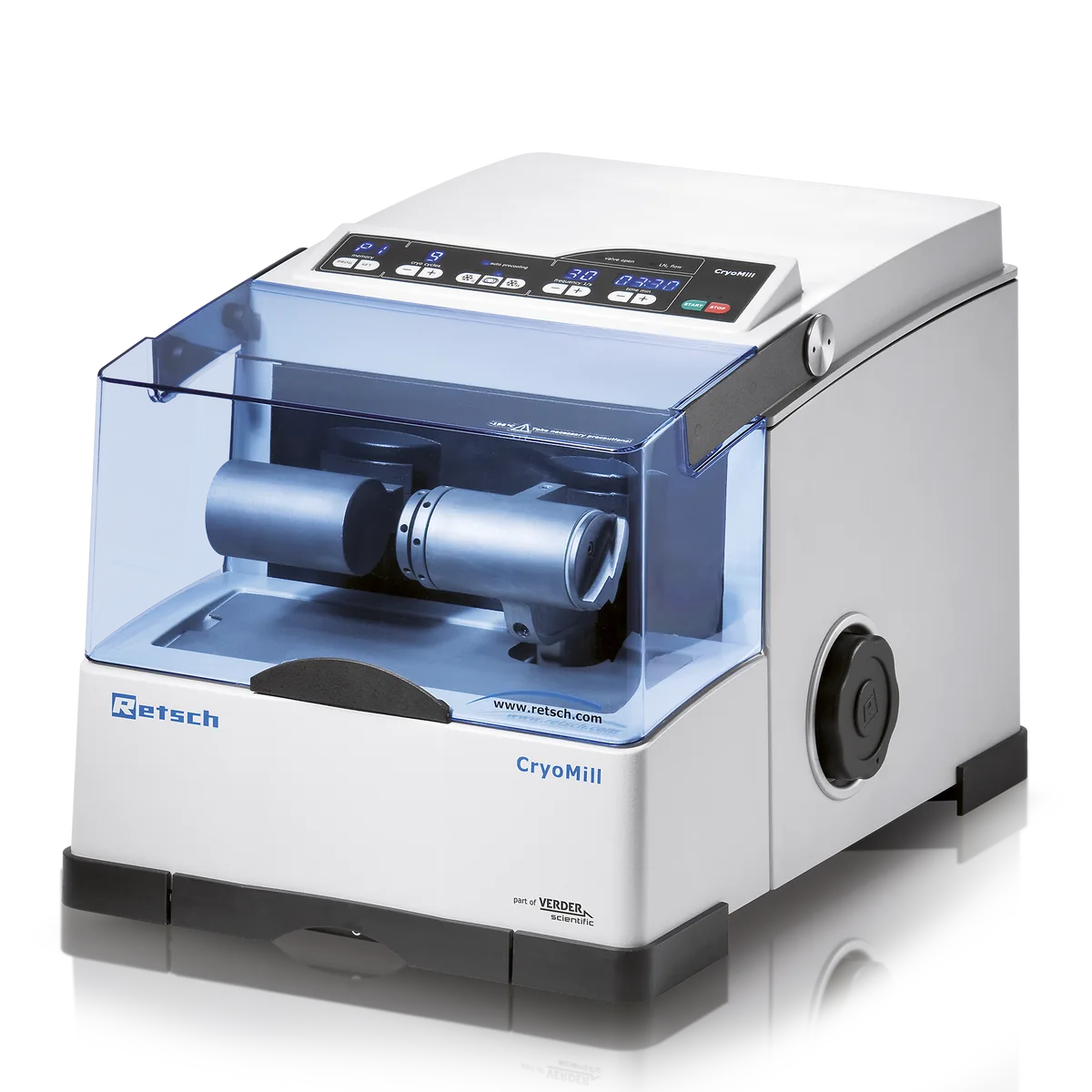

CryoMill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Mixer mill that cools the grinding jar continuously with liquid nitrogen to minus 196 degrees Celsius during grinding, so elastic and temperature sensitive material becomes brittle enough to fracture. Cooling runs before and throughout the cycle, and the jar is cooled rather than the sample being immersed, so the sample stays dry.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | hard, medium-hard, soft, brittle, elastic, fibrous |
| Size reduction principle | impact, friction |
| Final fineness | ~ 5 µm |
| Batch size / feed quantity | max. 20 ml |
| Vibrational frequency | digital, 5 - 30 Hz (300 - 1800 min-1) |
| Typical mean grinding time | 10 min / 4 min (cooling / grinding) |
| Dry grinding | yes |
| Wet grinding | yes |
| Cryogenic grinding | yes |
| Cell disruption with reaction vials | yes |
| Self-centering clamping device | yes |
| Type of grinding jars | screw top design |
| Material of grinding tools | hardened steel, stainless steel, zirconium oxide, PTFE |
| Grinding jar sizes | 5 ml / 10ml / 25 ml / 35 ml / 50 ml |
| Autofill | 50 l |
| Setting of grinding time | digital, 30 s - 99 min |
| Electrical supply data | 100-240 V, 50/60 Hz |
| Power connection | 1-phase |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
