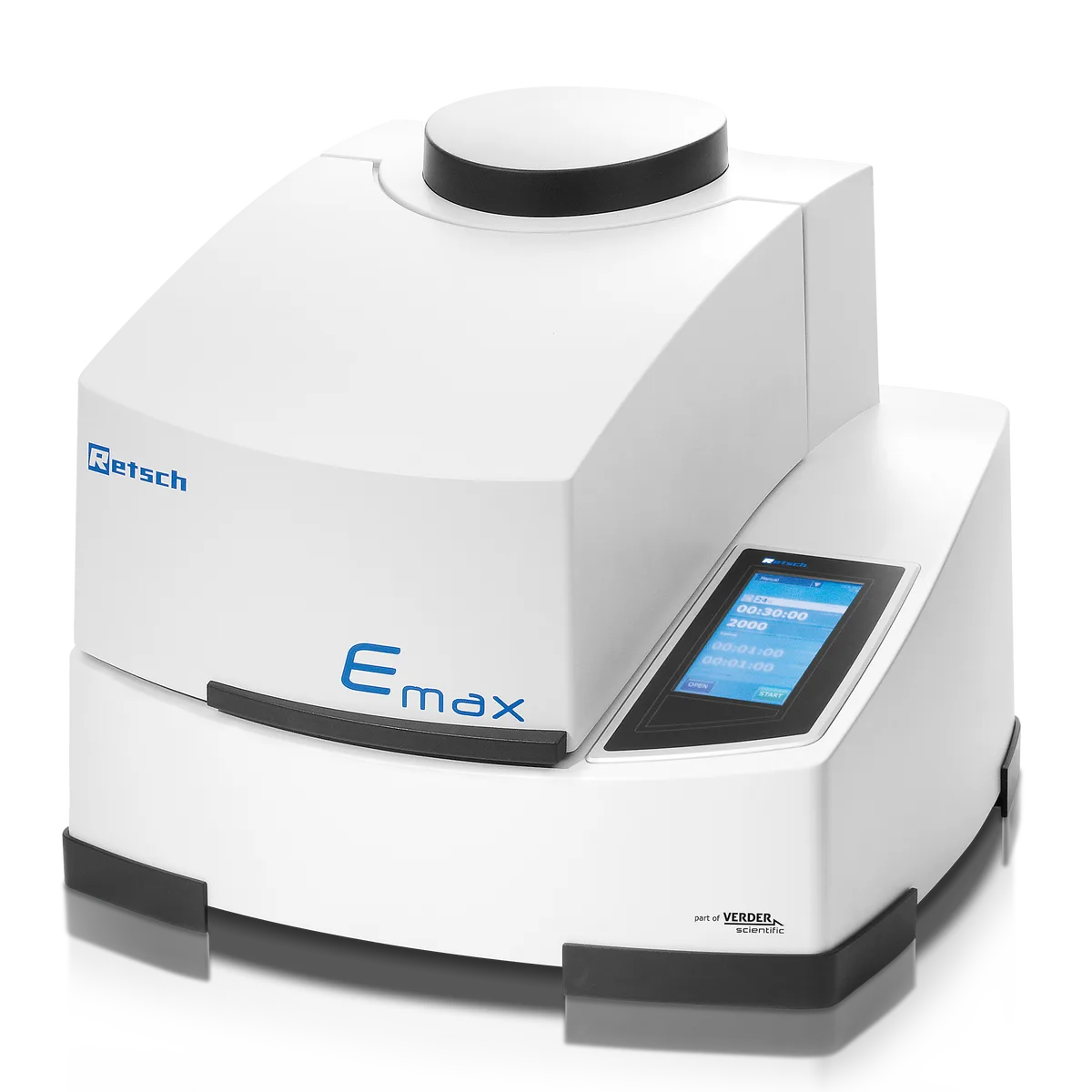

Emax: High Energy Ball Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
High energy ball mill that combines high frequency impact with intensive friction, reaching a final fineness below 80 nm. Integrated water cooling and temperature control allow long grinding runs without the sample overheating, which is what normally limits nanoscale grinding. It is used for nano grinding, mechanical alloying and colloidal milling.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 5 mm |
| Final fineness | 80 nm |
| Batch size / feed quantity | max. 2 x 45 ml |
| Speed at 50 Hz (60 Hz) | 300 - 2000 min-1 |
| Grinding jar sizes | 50 ml / 125 ml |
| Setting of grinding time | 00:01:00 to 99:59:59 |
| Interval time | 00:01:00 to 99:59:59 |
| Pause time | 00:01:00 to 99:59:59 |
| Drive power | 2600 W |
| Electrical supply data | 200-240 V, 50/60 Hz |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
