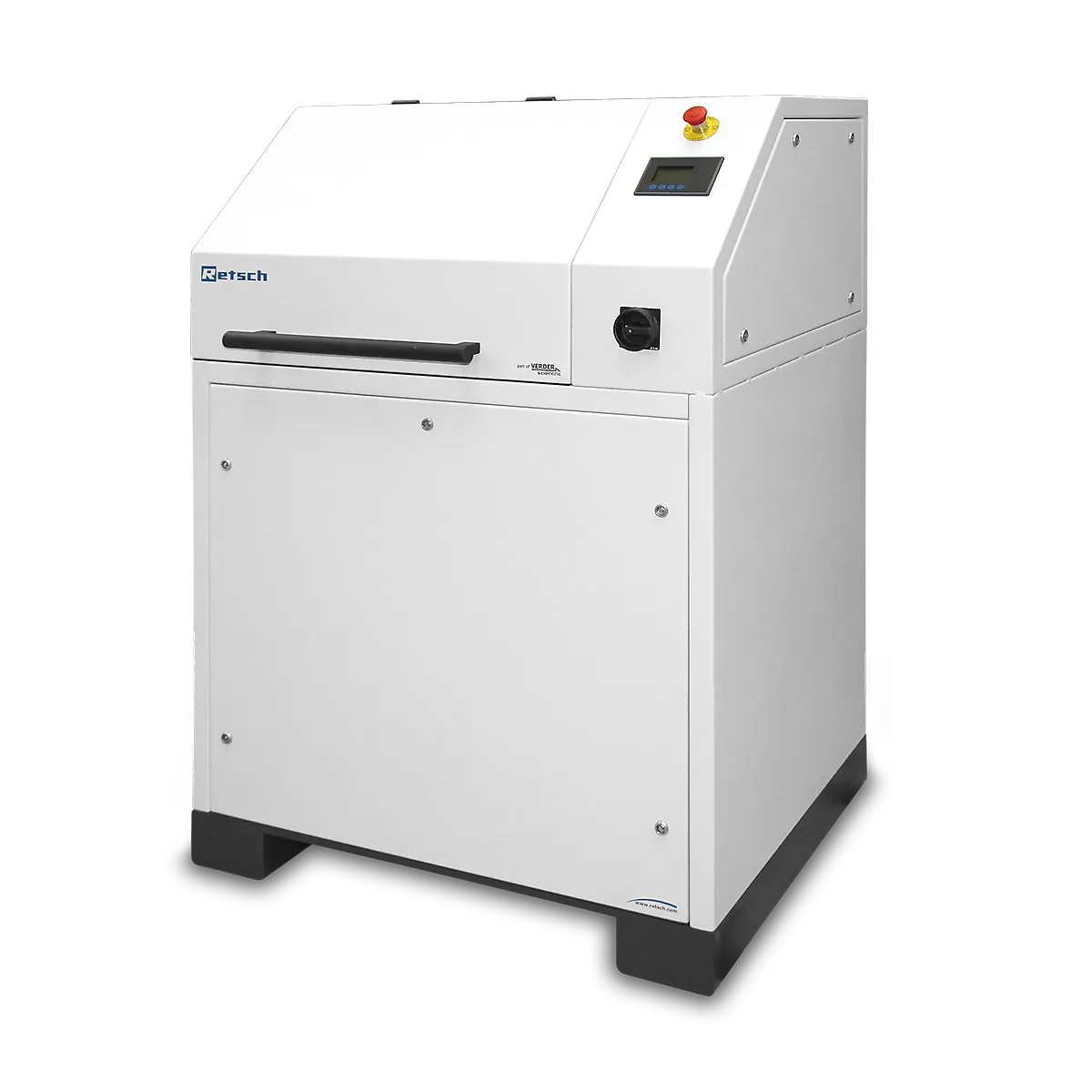

RS 300 XL: Vibratory Disc Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Large capacity vibratory disc mill taking batches from 35 ml up to 2,000 ml, for laboratories preparing large samples for spectral analysis. It reaches the same sub 20 µm fineness as the RS 200 but with grinding sets up to 2 litres, so a bulk sample does not have to be split before grinding.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 20 mm |
| Final fineness | 20 µm |
| Batch size / feed quantity | 35 - 2,000 ml |
| Speed at 50 Hz (60 Hz) | 912 min-1 |
| Material of grinding tools | chrome steel (hardened steel), tungsten carbide, steel 1.1740 (for heavy-metal free grinding) |
| Grinding jar sizes | 50 ml / 100 ml / 300 ml / 400 ml / 800 ml / 1,000 ml / 2,000 ml |
| Setting of grinding time | digital, 00:00 to 59:59 |
| Drive power | 2.2 kW |
| Power connection | 3-phase |
| W x H x D closed | 1150 x 1400 x 810 mm |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. The current manufacturer page names this family without the XL suffix. Confirm the precise model generation and corresponding datasheet when requesting a quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Retsch equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
