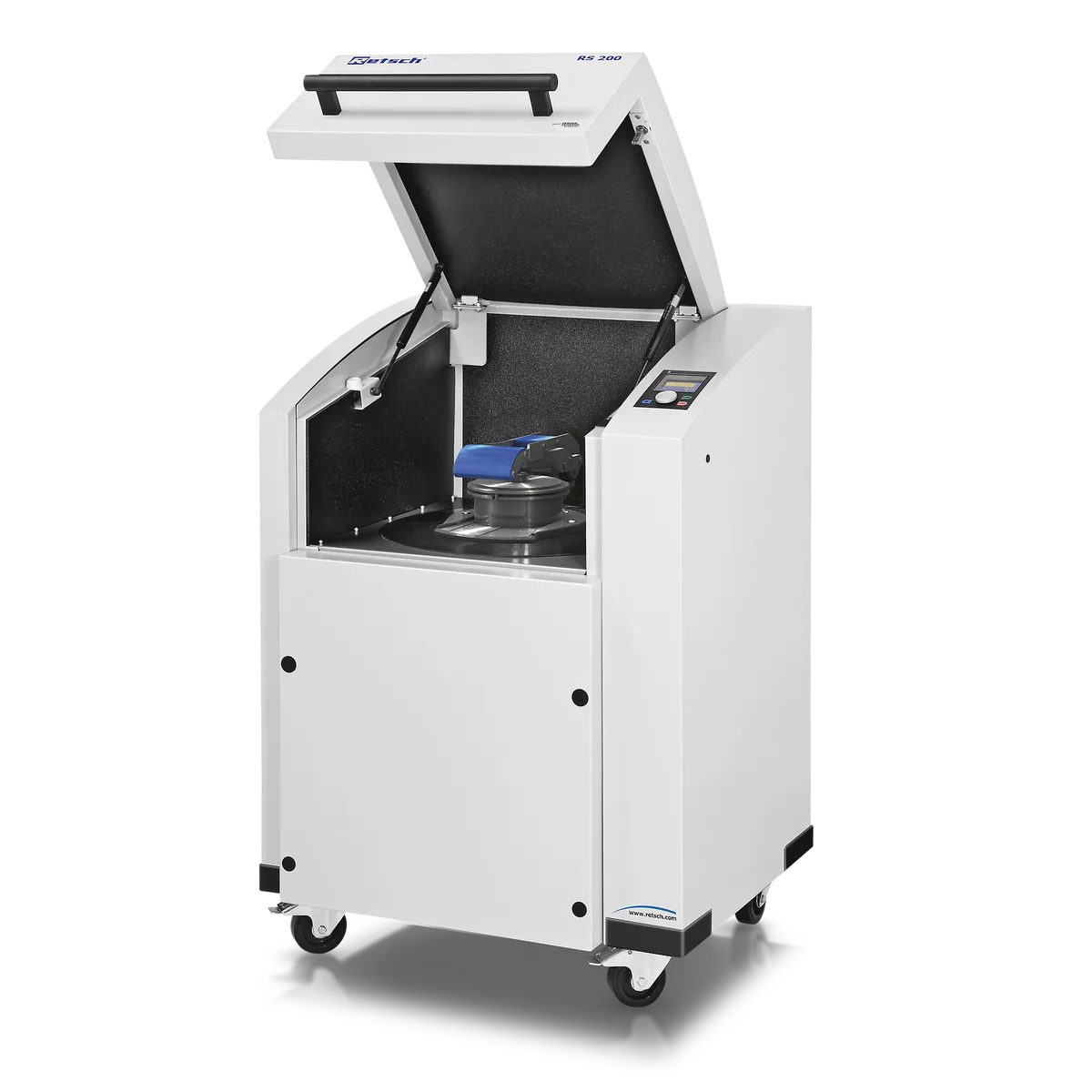

RS 200: Vibratory Disc Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Vibratory disc mill that homogenises medium hard, hard, brittle and fibrous samples to below 20 µm in seconds, which is the fineness spectral analysis needs. A grinding set of rings and a puck oscillates horizontally inside a sealed jar, so the sample is not exposed and loss of fines is limited.
Technical Specifications
| Parameter | Value |
|---|---|
| Feed material | medium-hard, hard, brittle, fibrous |
| Size reduction principle | pressure, friction |
| Max. feed size | 15 mm |
| Final fineness | 20 µm |
| Batch size / feed quantity | 15- 250 ml depending on size of grinding set |
| Speed at 50 Hz (60 Hz) | 700 - 1,500 min-1, continuously adjustable |
| Material of grinding tools | hardened steel, tungsten carbide, agate, zirconium oxide, steel 1.1740 (for heavy-metal free grinding) |
| Grinding jar sizes | 50 ml / 100 ml / 250 ml |
| Setting of grinding time | digital, 00:01 to 99:59 |
| Drive | 3-phase asynchronous motor with frequency converter |
| Drive power | 1.5 kW |
| Electrical supply data | different voltages |
| Power connection | 1-phase |
| Protection code | IP 20 |
| W x H x D closed | 836 x 1220 x 780 mm |
| Net weight | ~ 225 kg (without grinding set) |
| Standards | CE |
Published manufacturer data for the listed model or variants. Confirm the exact configuration, accessories and test conditions in the quotation. Checked 2026-09-29.
