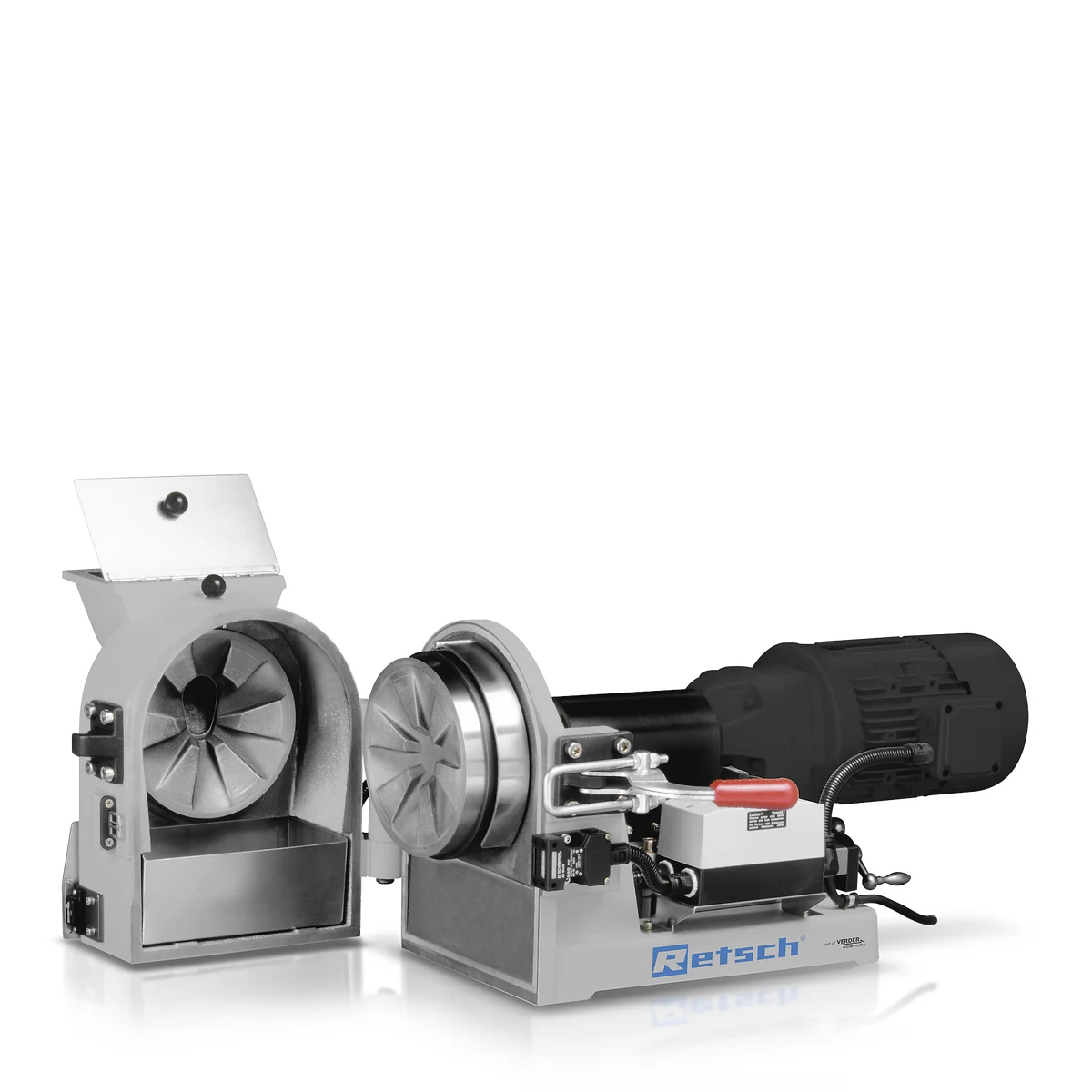

DM 200: Disc Mill
Brand: Retsch | Category: Scientific & Laboratory Equipment
Disc mill that reduces medium hard, hard and brittle material between a fixed and a rotating grinding disc, with the gap set continuously from 0.05 mm to 5 mm. It covers both preliminary and fine grinding, and the choice of disc material governs how fine it will go and how much contamination is introduced.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Max. feed size | 20 mm |
| Final fineness | 50 µm for hardened steel discs ; 100 µm for tungsten carbide or zirconium oxide discs |
| Speed at 50 Hz (60 Hz) | 440 min-1 (528 min-1) |
| Gap width setting | continuous, 0.05 - 5 mm |
| Collector capacity | 2.5 l |
| Drive power | 1.5 kW |
| Power connection | 3-phase |
| W x H x D closed | 440 x 400 x 870 mm |
| Net weight | ~ 140 kg |
Selected manufacturer data. Achievable fineness, throughput and preparation time depend on the sample, grinding tools and operating settings. Named accessories and optional configurations remain separate; confirm the exact equipment and electrical supply in the quotation. Checked 2026-09-29.
