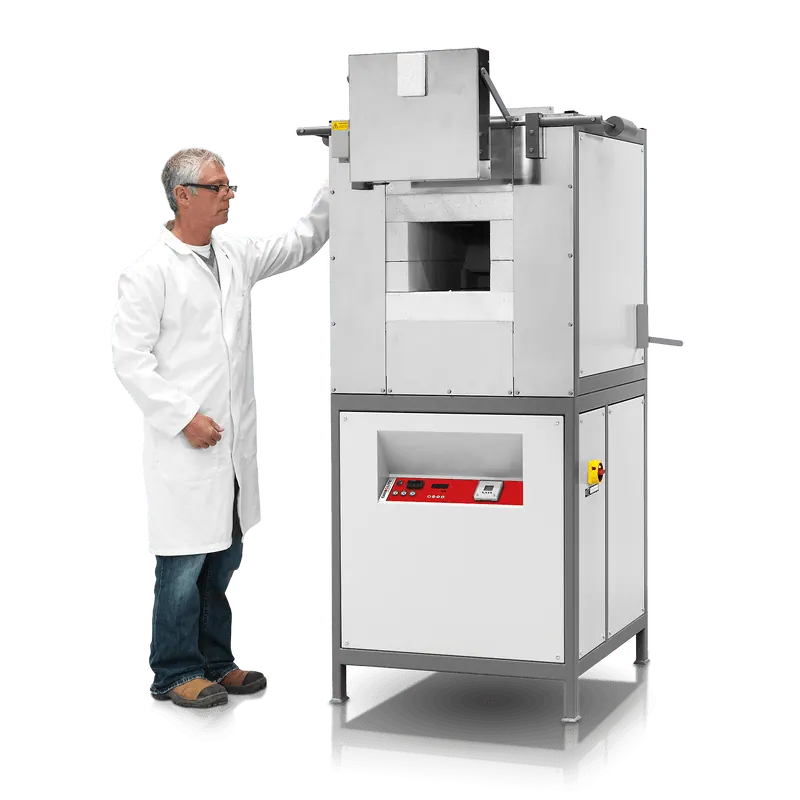

Cupellation Furnace CF
Brand: Carbolite Gero | Category: Nanotechnology
A furnace range for the cupellation or fire assay test used to determine the purity of precious metals. Silicon carbide elements above and below the chamber sit behind silicon carbide lining that resists the corrosive fumes the test produces.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum operating temperature | 1200 deg C on all models |
| Specification | CF 15B, CF 24B and CF 60B, internal 125 x 215 x 270 mm to 250 x 400 x 550 mm |
| Charge capacity with size 8 cupels | 15, 24 or 60 |
| Charge capacity with size 6 cupels | 24, 32 or 90 |
| Specification | Maximum power 9000 W, 13000 W or 31000 W, thermocouple type R |
| Meets the Precious Metals Convention hallmarking requirements and ISO 11426 | 1999 |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Materials, sample dimensions and process or measurement goal
- Required performance and existing instrument interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Carbolite Gero equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
