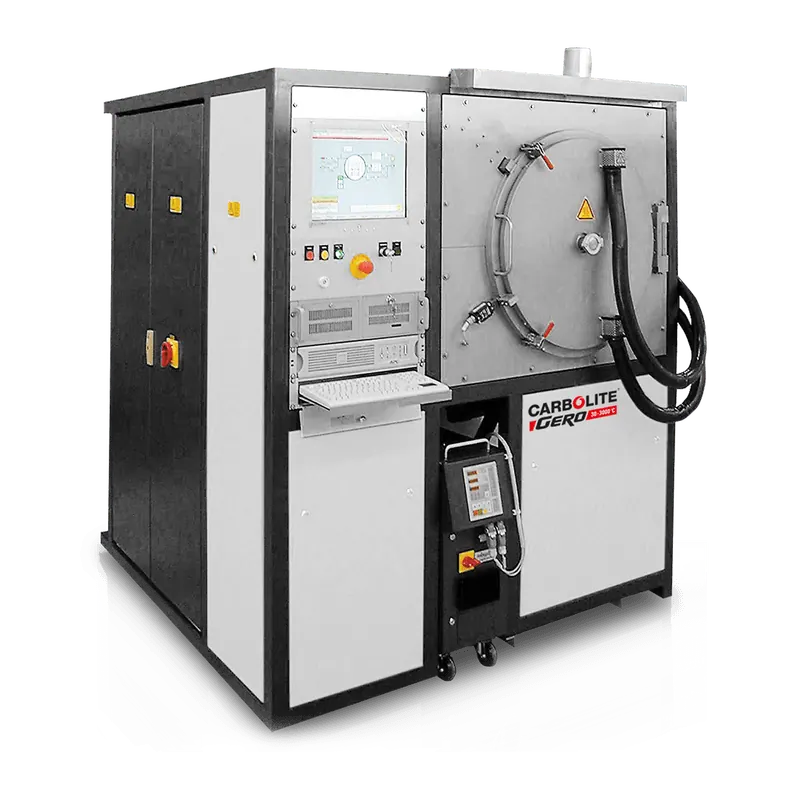

MIM Debinding Furnace EBO
Brand: Carbolite Gero | Category: Nanotechnology
A catalytic debinding furnace for removing binder from metal and ceramic injection moulded green parts made with BASF Catamold feedstock. Debinding runs on nitric acid under close control of both temperature profile and gas pressure.
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum temperature | 150 deg C |
| EBO 120/1.5 | 120 litre usable space, 400 x 400 x 700 mm, 15 kW |
| EBO 250/1.5 | 250 litre usable space, 500 x 500 x 1000 mm, 35 kW |
| Process gas nitrogen | 300 to 3000 l/h |
| Nitric acid | 30 to 180 ml/h |
| Specification | Fixed debinding time or fully automatic self detecting debinding |
