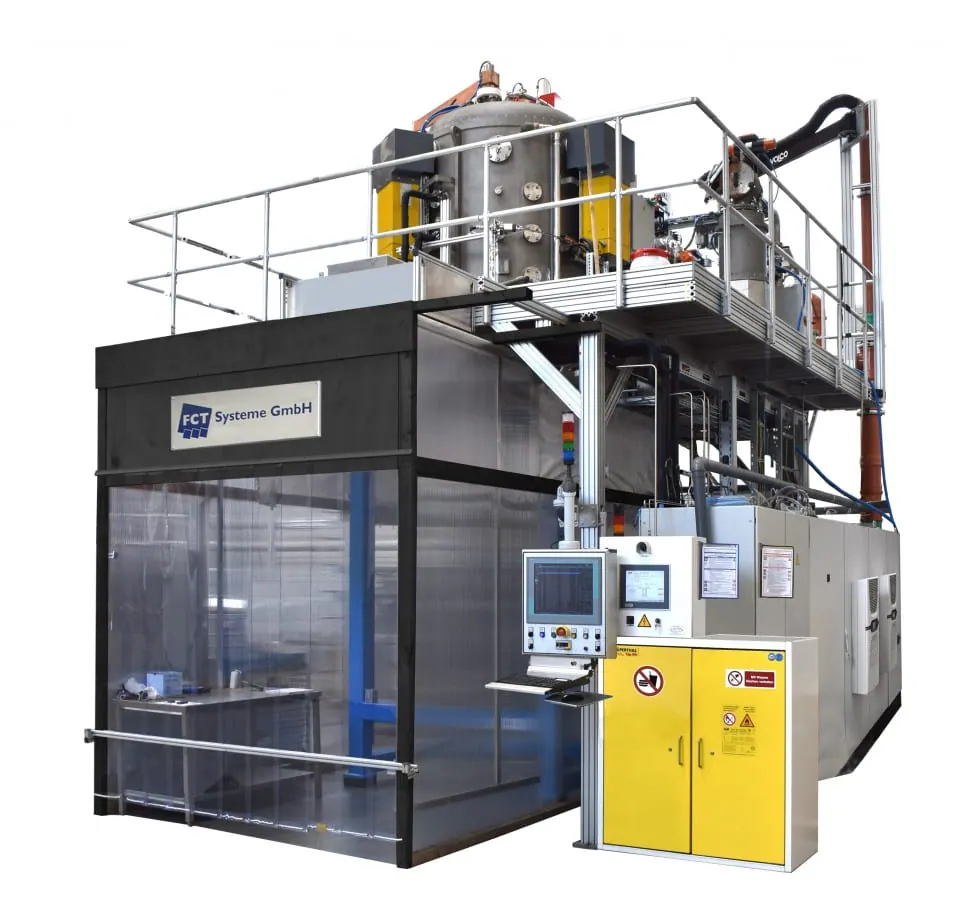

CVI Coating System Type CVI
Brand: FCT Systeme | Category: Nanotechnology
A chemical vapour infiltration system that infiltrates matrix material into porous or fibrous preforms to produce composite components. Switching between multiple gas inlets allows multilayer interfacial coatings on complex shapes.
Technical Specifications
| Parameter | Value |
|---|---|
| Model FS W 500-CVI | usable dimensions 1000 x 600 mm |
| Usable volume | 500 dm3 |
| Maximum load | 450 kg |
| Maximum temperature | 1600 deg C, application temperature up to 2200 deg C |
| Maximum heating power | 300 kW |
| Specification | Materials include SiC, Si3N4, BN and AlN with matched precursor chemistry |
