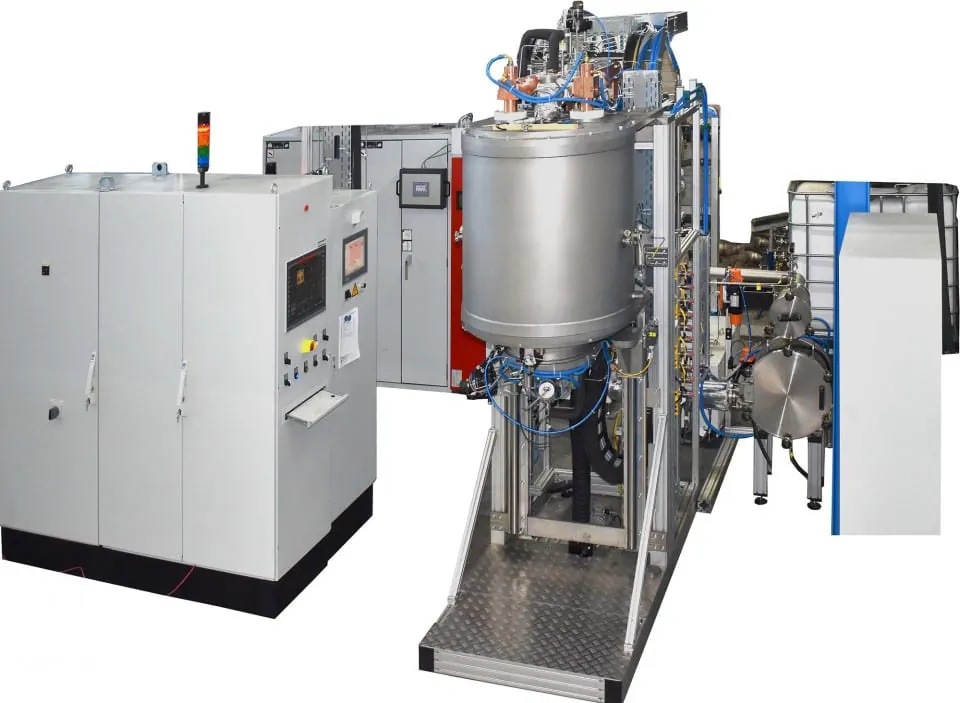

CVD Coating System Type CVD
Brand: FCT Systeme | Category: Nanotechnology
A thermally induced chemical vapour deposition system for depositing uniform dielectric, semiconducting and metallic layers. Multi-zone heating with a rotating turntable and a bottom loader design suit pyrolytic carbon, silicon carbide and boron nitride coatings.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Models CVD 30 to CVD 2500, chamber 360 x 295 mm to 1400 x 1700 mm |
| Usable volume | 30 dm3 to 2600 dm3 |
| Maximum load | 25 kg to 600 kg |
| Maximum temperature | 1600 deg C, application temperature up to 2200 deg C |
| Maximum heating power | 45 kW to 500 kW |
| Specification | Atmospheric pressure AP-CVD or low pressure LP-CVD operation |
