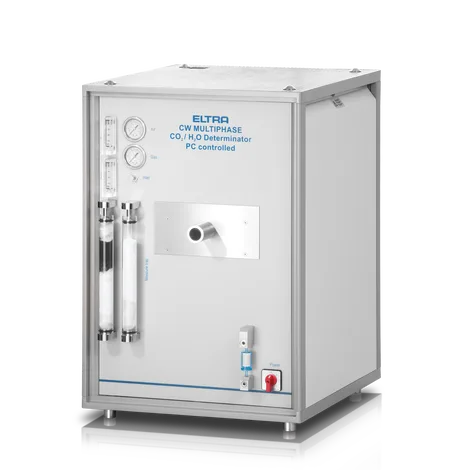

CW-800M: Carbon / Water Analyser
Brand: Eltra | Category: Scientific & Laboratory Equipment
Fractional carbon and water analyser that steps the furnace through up to five programmed temperatures in one run, so total organic and total inorganic carbon can be separated by their release temperature rather than by acid treatment. Maximum sample size is 32 by 145 mm in a quartz boat.
Selected manufacturer specifications
| Parameter | Value |
|---|---|
| Maximum sample size | 32 x 145 mm |
| Typical analysis time | 60 - 90 s |
| Power requirements | 230 V, 50/60 Hz, max. 10 A, 2300 W |
| Dimensions (W x H x D) | 55 x 80 x 60 cm |
| Weight | ~ 65 kg |
Selected values from the manufacturer’s technical data for this product or explicitly named model variants. Measurement performance depends on the sample and configuration. Confirm the current model, utilities, accessories and acceptance criteria in the quotation. Checked 2026-09-29.
Confirm your configuration
Share the details you know so we can prepare a comparable, itemised offer.
- Sample material, dimensions/quantity and required preparation or analysis result
- Measuring/working range, repeatability requirements and compatible accessories
- Utilities, calibration/reference materials, software and service scope
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Eltra equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
