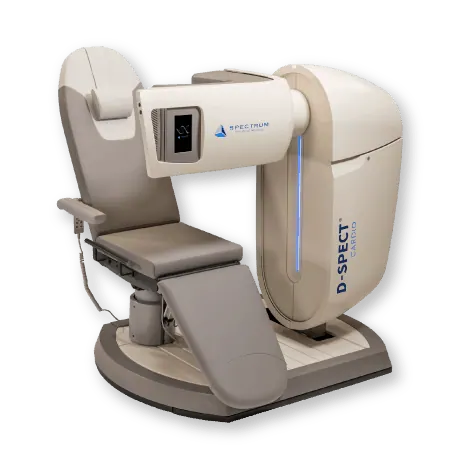

D-SPECT CARDIO
Brand: Spectrum Dynamics Medical | Category: Nuclear Medicine & Imaging
A dedicated cardiac SPECT camera with an open gantry and CZT detector columns that swivel while the gantry stays still. Patients can be scanned upright, supine or at any angle between, and list mode data supports quantification such as coronary flow reserve.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | 6 or 9 CZT detector columns |
| Specification | Patented swivelling detector columns with the gantry in a fixed position |
| Specification | Chair supports up to 1000 lb (454 kg) |
| Specification | Supine, upright or any angle in between |
| Specification | Myocardial perfusion scan as fast as two minutes |
| Specification | List mode acquisition and 20 second pre scan scout |
