Gamma Distortion
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

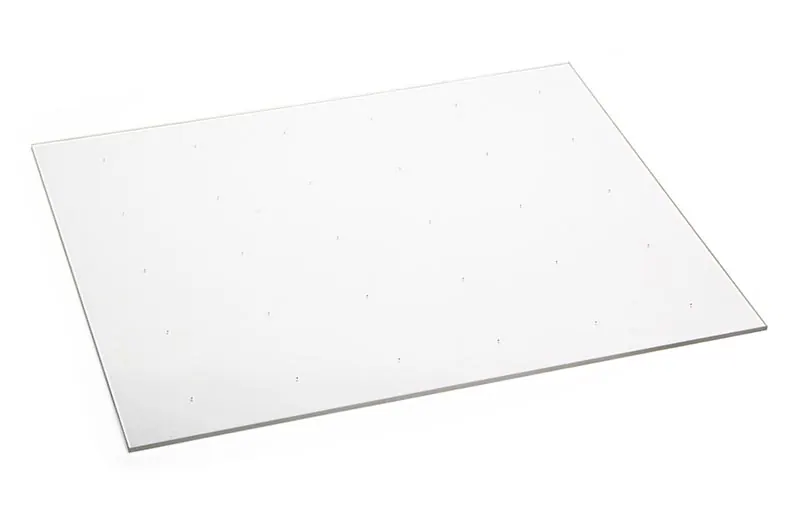

A rigid PMMA phantom for quality control of geometric distortion and spatial resolution on gamma cameras. A regular array of small holes is filled with activity so the physicist can check point to point distances against true distances and measure the point spread function across the field of view.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | Series of 1 mm diameter, 3 mm deep holes at 80 mm pitch |
| Specification | Point to point measurement of geometric accuracy |
| Specification | Point spread function measured at each point for spatial resolution and its homogeneity across the FOV |
| Material | rigid PMMA |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
