Gamma Resolution
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

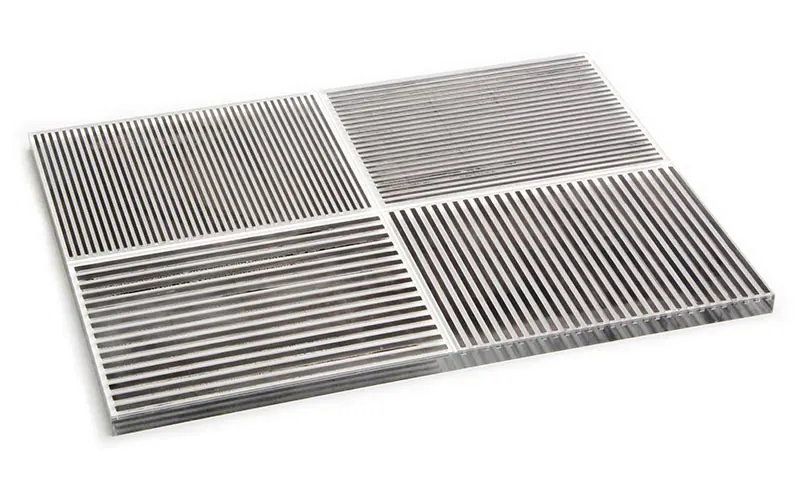

A four quadrant lead bar phantom in a rigid PMMA housing, used for routine quality control of gamma camera spatial resolution. Each quadrant carries a different bar width and spacing, and engraved pigment filled centre lines allow the phantom to be positioned the same way every time.
Technical Specifications
| Parameter | Value |
|---|---|
| External dimensions | 17.5 x 400 x 540 mm |
| Pb bar thickness | 5 mm |
| Quadrant 1 | 41 bars, 3.2 mm width and spacing, 190 mm bar length |
| Quadrant 2 | 24 bars, 4.0 mm width and spacing, 260 mm bar length |
| Quadrant 3 | 28 bars, 4.8 mm width and spacing, 190 mm bar length |
| Quadrant 4 | 15 bars, 6.4 mm width and spacing, 260 mm bar length |
