VERTO
Brand: Leeds Test Objects | Category: Nuclear Medicine & Imaging

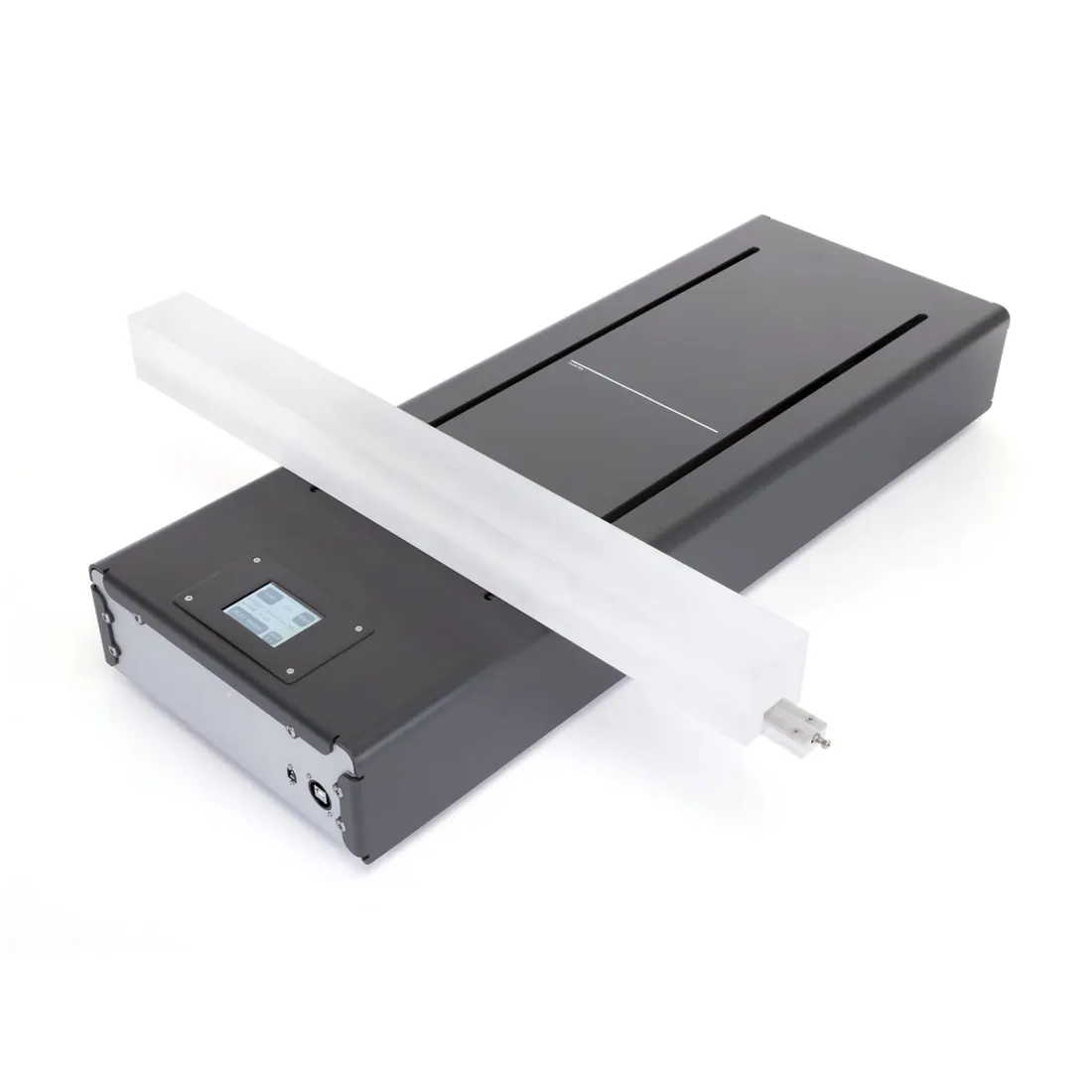

A dynamic line phantom for gamma camera quality control that replaces heavy fillable flood phantoms and bar masks. A microprocessor controlled line source sweeps back and forth across the detector, starting, stopping and dwelling to the selected program, chosen on the integrated touchscreen.
Technical Specifications
| Parameter | Value |
|---|---|
| Standard programs | centring test, uniformity 500 mm sweep, uniformity 300 mm sweep, 10 mm parallel lines, 20 mm parallel lines, spatial resolution pattern |
| Specification | Supplied with VERTO motion actuator, transparent line source, PMMA attenuator and power cable |
| Specification | Tungsten mask with 20 mm pitch, 2 mm diameter holes |
| Dimensions including carry case | 88 x 38 x 30 cm |
| Weight including carry case | 18.8 kg |
| Specification | Programs selected on an integrated touchscreen |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Leeds Test Objects equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
