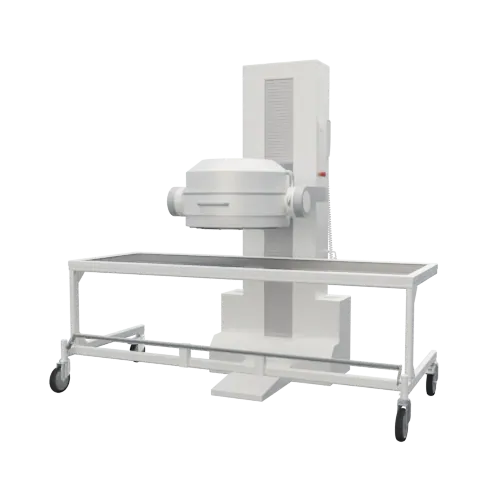

SYNGULA SCINTRON
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging
A compact large field of view gamma camera for planar work, built for static, dynamic and gated studies on sitting and lying patients. The detector carries 37 matched photomultiplier tubes and a 3/8 inch sodium iodide crystal, with a wide choice of collimators and DICOM connectivity.
Technical Specifications
| Parameter | Value |
|---|---|
| Field of view | 38.7 cm (15.2 in) large field of view detector |
| Specification | 37 matched photomultiplier tubes |
| Crystal | 3/8 in NaI(Tl) scintillation crystal |
| Specification | Lead shielding for isotopes and energies up to 400 keV |
| Dimensions | width 83 cm, height 201 cm, depth 122 cm |
| Specification | Windows 10 IoT based platform with DICOM interface |
