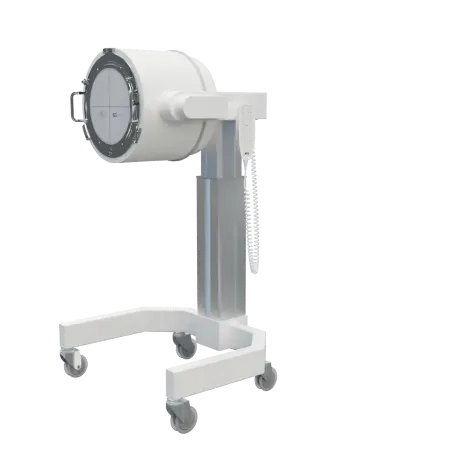

PICOLA SCINTRON
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging
A compact small field of view gamma camera for thyroid, renal and other small organ studies where floor space is limited. The 10 inch detector carries 37 matched 2 inch photomultiplier tubes, and detector tilt and height are driven by a hand controller with an anatomical marker function.
Technical Specifications
| Parameter | Value |
|---|---|
| Field of view | 10 in (25.4 cm) |
| Specification | 37 matched 2 in photomultiplier tubes |
| Crystal | 3/8 in NaI(Tl), optional 1/4 in |
| Specification | Lead shielding for isotopes with energies up to 400 keV |
| Dimensions | width 80 cm (31.5 in), depth 72 cm (28 in) |
| Detector electronics | FRED, Fast Response Enhanced Detector |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about MiE GmbH equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
