DIACAM SCINTRON
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging

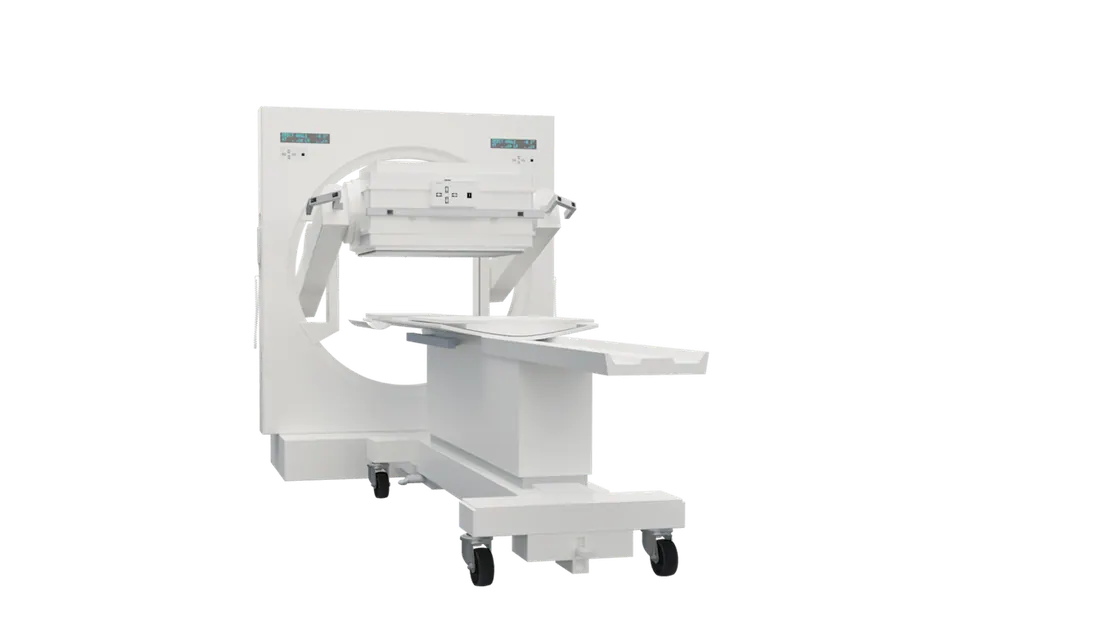

A gamma camera for all energy SPECT, whole body and planar imaging, supplied with the SCINTRON acquisition and processing system. The large rectangular detector carries 59 high efficiency photomultiplier tubes, and the patient handling system takes loads up to 159 kg.
Technical Specifications
| Parameter | Value |
|---|---|
| Detector field of view | 53.3 cm x 40 cm |
| Specification | 59 high efficiency photomultiplier tubes |
| Sodium iodide crystal | 23.25 in x 17.5 in, 3/8 in thickness |
| Specification | Shielding up to 400 keV |
| Patient handling system | maximum load 350 lbs (159 kg), speed up to 20 in per minute |
| Specification | Windows 10 IoT based platform with DICOM interface |
