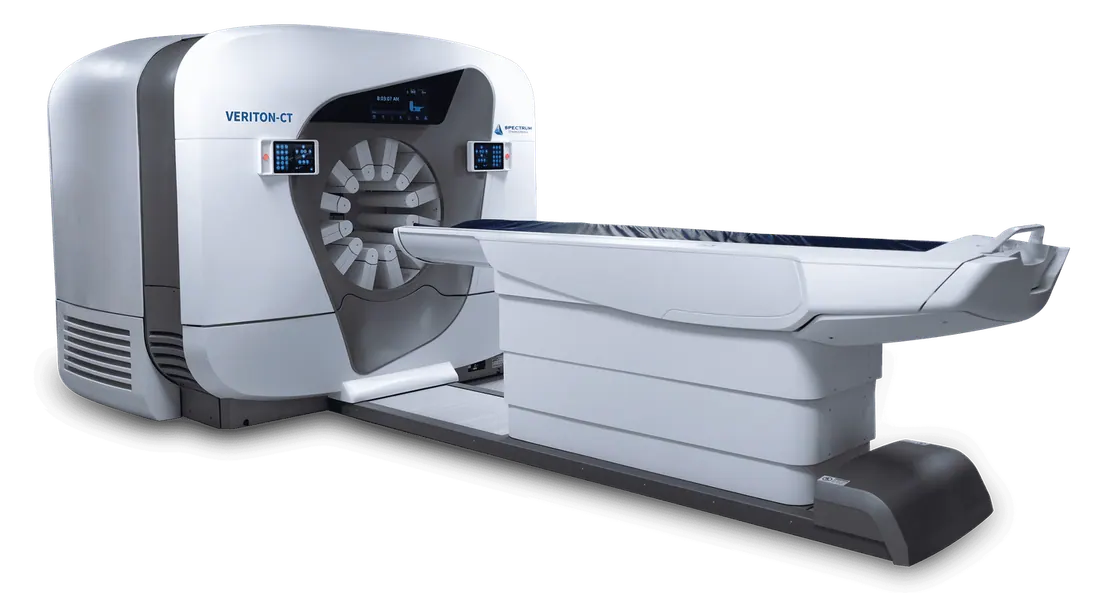

VERITON-CT 400 Series
Brand: Spectrum Dynamics Medical | Category: Nuclear Medicine & Imaging
A ring shaped gantry digital SPECT/CT scanner with 12 swivelling CZT detector columns that move to within millimetres of the body contour. It scans head to toes in hybrid mode and reconstructs with attenuation, scatter and partial volume correction on the TruView console.
Technical Specifications
| Parameter | Value |
|---|---|
| Specification | 12 swivelling digital CZT detectors in a 360 degree ring shaped gantry |
| Specification | 80 cm bore size for both the NM and CT sections |
| Specification | Choice of 16 slice or 64 slice diagnostic CT |
| Specification | 200 cm hybrid scan range with real time body contouring |
| Specification | CT coverage up to 20/40 mm at 0.625 mm spatial resolution |
| Specification | FDA cleared, CE marked and Health Canada approved platform |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Spectrum Dynamics Medical equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Back to Nuclear Medicine & Imaging
More from Gamma Cameras & SPECT
- VERITON
The SPECT only member of the VERITON family, using the same 360 degree ring of 12 digital CZT detector columns and adaptive body contouring as the hybrid version. Reconstruction options include OSEM with resolution recovery, attenuation correction and scatter correction.
- DIACAM SCINTRON
A gamma camera for all energy SPECT, whole body and planar imaging, supplied with the SCINTRON acquisition and processing system. The large rectangular detector carries 59 high efficiency photomultiplier tubes, and the patient handling system takes loads up to 159 kg.
- D-SPECT CARDIO
A dedicated cardiac SPECT camera with an open gantry and CZT detector columns that swivel while the gantry stays still. Patients can be scanned upright, supine or at any angle between, and list mode data supports quantification such as coronary flow reserve.
