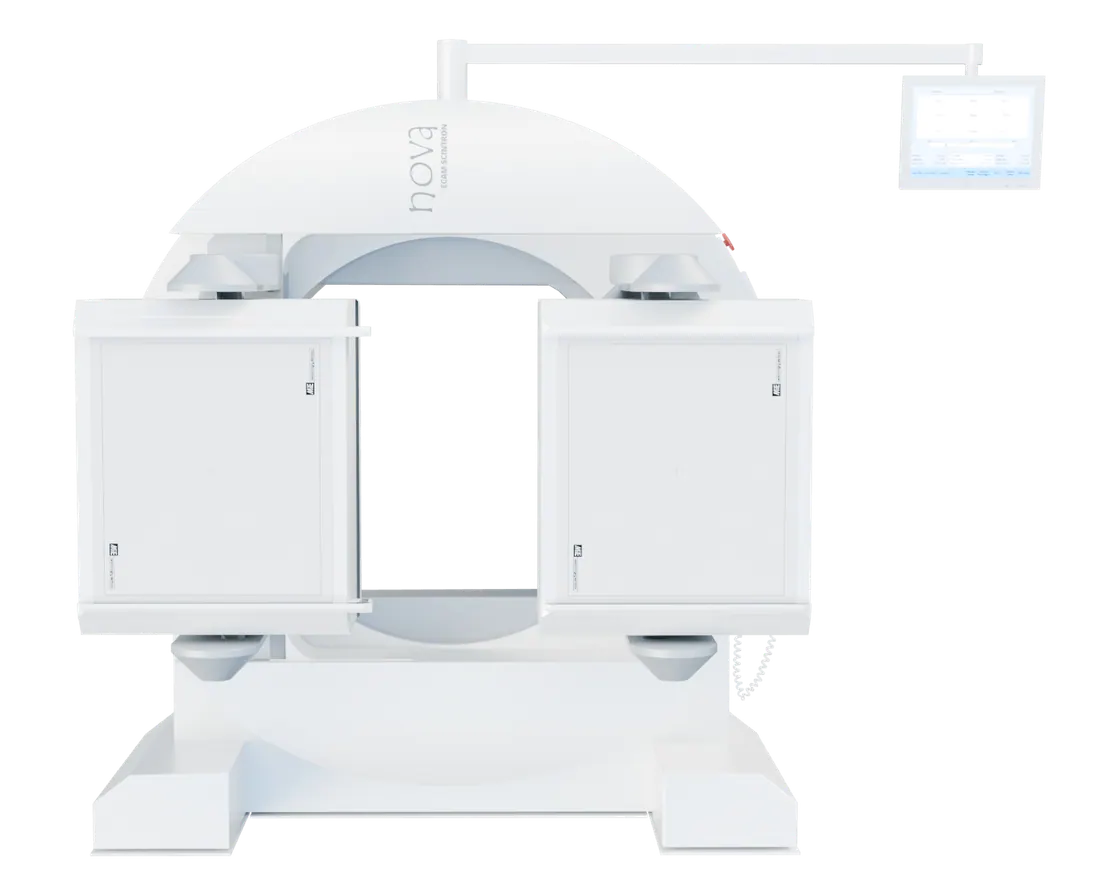

ECAM NOVA Scintron
Brand: MiE GmbH | Category: Nuclear Medicine & Imaging
A dual head gamma camera for SPECT, whole body and planar imaging in busy departments. It uses FRED digital detectors with 59 photomultiplier tubes per head, real time body contouring and an integrated touchscreen for positioning. Detector heads work at 76, 90 and 180 degrees.
Technical Specifications
| Parameter | Value |
|---|---|
| Field of view | 53.3 cm x 38.7 cm |
| Number of PMTs | 59 per detector |
| Crystal thickness | 9.5 mm (3/8 in) NaI(Tl) |
| Energy range | up to 511 keV |
| System sensitivity with LEHR collimator | absolute 202 cpm/uCi or better |
| Maximum scan length | 202 cm |
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Department workflow and intended equipment use
- Required configuration and existing system interfaces
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about MiE GmbH equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
